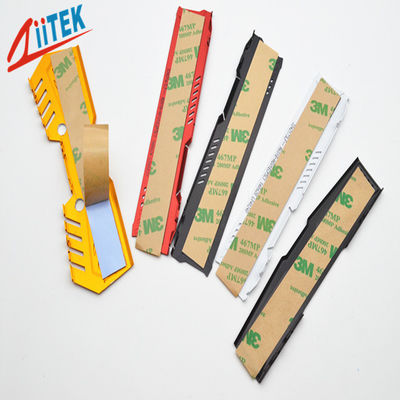

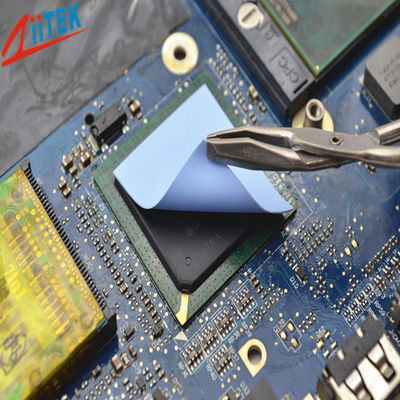

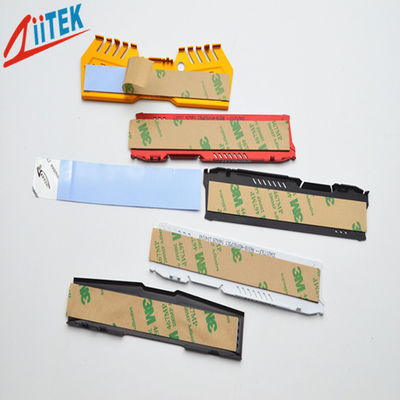

Electric Insulation Blue Silicon Thermal Pad Low Volatile Material 0.3mmT For LED Street Light

Electric Insulation Blue Silicon Thermal Pad Low Volatile Material 0.3mmT For LED Street Light
Electric Insulation Blue Silicon Thermal Pad Low Volatile Material 0.3mmT For LED Street Light Electric Insulation Blue Silicon Thermal Pad Low Volatile Material 0.3mmT For LED Street Light Electric Insulation Blue Silicon Thermal Pad Low Volatile Material 0.3mmT For LED Street Light

Large Image :  Electric Insulation Blue Silicon Thermal Pad Low Volatile Material 0.3mmT For LED Street Light

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs and UL
Model Number: TIS112-05
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: 0.1-10 USD/PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3Word days
Payment Terms: T/T
Supply Ability: 100000PCS/Day
Detailed Product Description
Product Name: Electric Insulation Blue Silicon Thermal Pad Low Volatile Material 0.3mmT For LED Street Light Hardness: 50 Shore 00
Specific Gravity: 1.72g/cc Thickness: 0.3mmT
Color: Blue Dielectric Constant: 5.5 MHz
Thermal Conductivity: 1.0W/mK
Highlight:

Electric insulation silicone thermal pad

,

low volatile silicone thermal pad

,

Thermal Insulation Materials 0.3mmT

Electric Insulation Blue Silicon Thermal Pad Low Volatile Material 0.3mmT For LED Street Light



The TISTM112-05  products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.


Features


>  Highly compliant surface characteristic with high thermal conductivity
>  High thermal conductive and High dielectric strength
>  Low thermal resistance with high voltage isolation
>  Resistant to tears and punctures


Applications


>  Power conversion equipment
>  Power semiconductors:To packages, MOSFETs & IGBTs
>  Audio and Video components
>  Automotive control units
>  Closed cell
>  General high pressure interface



Typical Properties of TISTM112-05 Series
Product Name TISTM112-05 Test Method
Color Blue Visual
Construction &Compostion Ceramic filled silicone elastomer /Fiberglass *****
Thickness range 0.3mm ASTM D751
Specific Gravity 1.72 g/cc ASTM D297
Hardness 50 Shore 00 ASTM 2240
Tensile Strength 425 Kpsi ASTM D412
Continuos Use Temp -45 to 180℃ *****
Dielectric Breakdown Voltage >3500 VAC ASTM D149
Dielectric Constant @1MHz 5.5 ASTM D150
Volume Resistivity >4.0x1012 Ohm-cm Ohm-meter ASTM D257
Fire rating 94 V0 equivalent UL
Thermal conductivity 1.0 W/mK ASTM D5470
1.0W/mK ISO22007-2



Product Specification


Product Thicknesses
TIS 109-05: 0.23mm
TIS 112-05: 0.30mm
TIS 118-05: 0.45mm


Product Sizes
12" x 160′(304mm x 48.76M)


Individual die cut shapes and custom thickness can be supplied.Please contact us for confirming.
The product come standard with fiberglass reinforcement designated by the suffix " FG".

Electric Insulation Blue Silicon Thermal Pad Low Volatile Material 0.3mmT For LED Street Light 0

Company Profile


With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
