| Product Name: | TIS112-01 | Hardness: | 50 Shore A |
|---|---|---|---|
| Volume Resistivity: | 3.5X10" Ohm-meter | Thickness: | 0.3mmT |
| Color: | Gray | Dielectric Constant: | 5.5 MHz |
| High Light: | grey soft Thermal Insulation Materials,0.3mmT Thermal Insulation Materials,grey thermal conductivity pads |
||

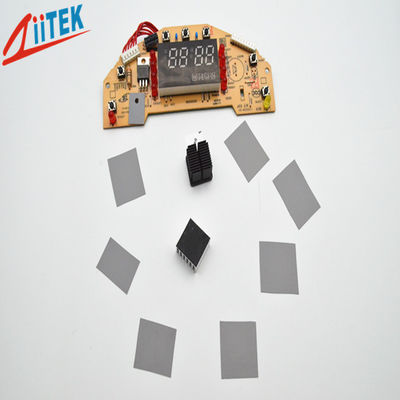

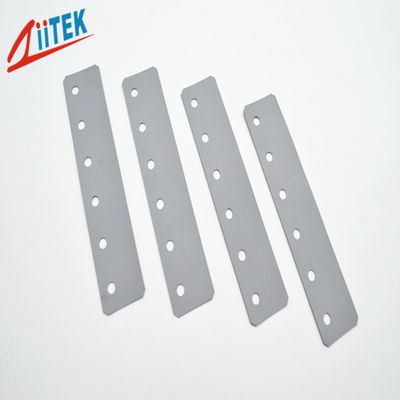

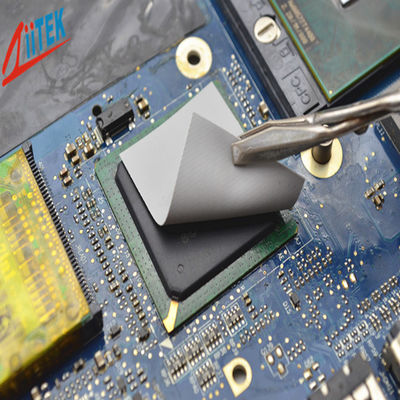

Electric insulation and thermal conductivity grey soft 0.3mmT pads 1w conductivity for closed cell heat sinking
The TIS™112-01 products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.
TIS100-01 Serice Datasheet-(E)-REV01.pdf
Features
> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
Applications
> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Closed cell
> General high pressure interface
| Typical Properties of TIS™112-01 | |||||||||||||
| Product Name | TISTM100-01 | TISTM100-02 | TISTM100-03 | TISTM100-05 | Test Method | ||||||||
| Color | Grey | Pink | Yellow | Blue | Visual | ||||||||
| Construction & Compostion |
Ceramic filled silicone rubber | Ceramic filled silicone rubber | Ceramic filled silicone rubber | Ceramic filled silicone rubber | *** | ||||||||
| Composite Thickness | 9/0.23 | 12/0.3 | 18/0.45 | 9/0.23 | 12/0.3 | 18/0.45 | 9/0.23 | 12/0.3 | 18/0.45 | 9/0.23 | 12/0.3 | 18/0.45 | ASTM2240 |
| Specific Gravity | 1.75 | 1.75 | 1.75 | 1.75 | ASTM D297 | ||||||||
| Heat Capacity | 1.0 | 1.0 | 1.0 | 1.0 | ASTM C351 | ||||||||
| Hardness | 50 | 50 | 50 | 50 | ASTM D751 | ||||||||
| Tensile Strength | 425 | 425 | 425 | 425 | ASTM D412 | ||||||||
| Continuos Use Temp | (-58 to 356℉) / (-50 to 180℃) | *** | |||||||||||
| Electrical | |||||||||||||
| Dielectric Breakdown Voltage | >3500 | >3500 | >3500 | >3500 | ASTM D149 | ||||||||
| Dielectric Constant | 5.5 | 5.5 | 5.5 | 5.5 | ASTM D150 | ||||||||
| Volume Resistivity | 3.5X10" | 3.5X10" | 3.5X10" | 3.5X10" | ASTM D257 | ||||||||
| Fire rating | 94 V0 | 94 V0 | 94 V0 | 94 V0 | Equivalent UL | ||||||||
| Thermal | |||||||||||||
| Thermal conductivity | 1.0 | 1.0 | 1.0 | 1.0 | ASTM D5470 | ||||||||
| Thermal Impedance @50psi | 1.52 | 2.35 | 3.45 | 1.52 | 2.35 | 3.45 | 1.52 | 2.35 | 3.45 | 1.52 | 2.35 | 3.45 | ASTM D5470 |
Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.009"(0.228mm)
0.010"(0.254mm) 0.012"(0.304mm) 0.018"(0.457mm)
Consult the factory alternate thickness.
Standard Sizes:
16" x 18"(406mm x 457mm) 16" x 200'(406mm x 60.9M)
Individual die cut shapes can be supplied.

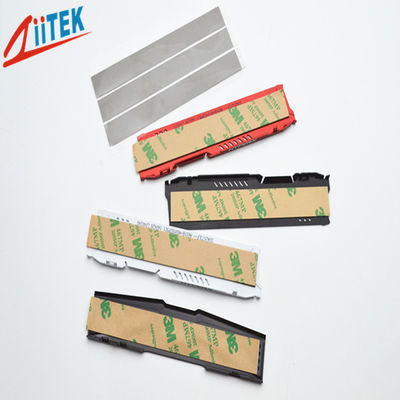

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.
Reinforcement:
TIS™ series sheets are fiberglass reinforced.
