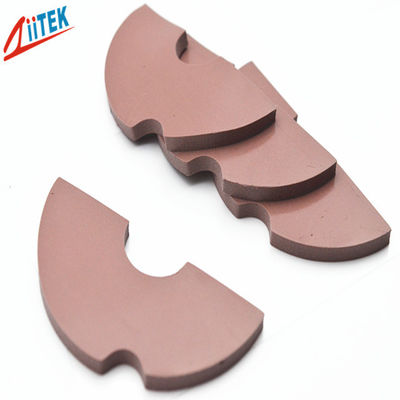

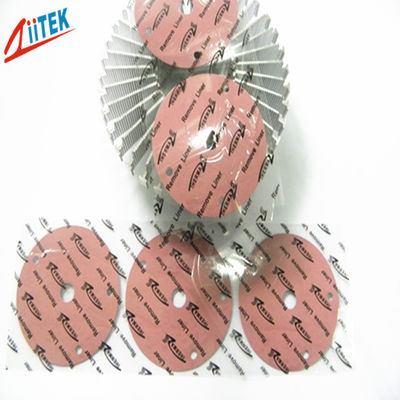

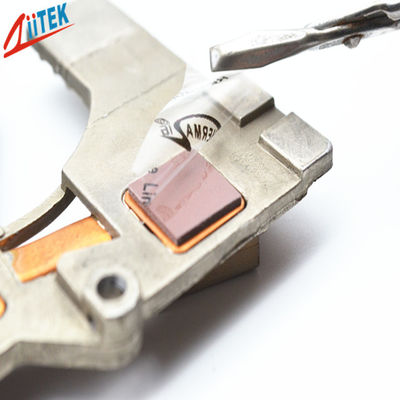

CPU GPU 1.5W/Mk Heat Sinks Cooling Pad 2mmT Thermal Conductive Silicone Pad With ROHS/UL Certification
Company Profile
Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, military, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.
The TIF180-31S use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
> Electrically isolating
> High durability
Applications
Electronic components, 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
| Typical Properties of TIF180-31S Series |
| Color |
Garnet |
Visual |
| Construction & Compostion |
Ceramic filled silicone rubber |
*** |
| Specific Gravity |
2.75 g/cc |
ASTM D297 |
| Heat Capacity |
1 l /g-K |
ASTM C351 |
| Hardness |
45 Shore 00 |
ASTM 2240 |
| Tensile Strength |
45 psi |
ASTM D412 |
| Continuos Use Temp |
-50 to 200℃ |
*** |
| Dielectric Breakdown Voltage |
>10000 VAC |
ASTM D149 |
| Dielectric Constant |
5.5 MHz |
ASTM D150 |
| Volume Resistivity |
7.8X1012 Ohm-meter |
ASTM D257 |
| Fire rating |
94 V0 |
equivalent UL |
| Thermal conductivity |
1.5 W/m-K |
ASTM D5470 |
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
Questions
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
