1mmT High Quality And High Conductivity 3w Green Silicone Thermal Conductive Pad For Advanced Cooling Needs
The TIF®140-30-05S Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features:
> Good thermal conductive: 3.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
Applications:

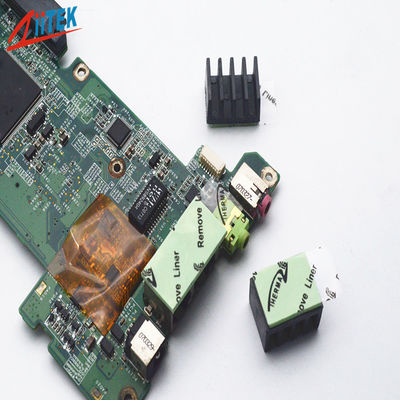

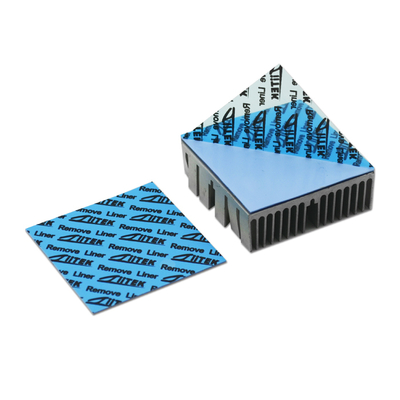

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LCD TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
| Typical Properties of TIF®140-30-05S Series |
| Color |
Blue |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Thickness range |
0.020"(0.5mm)~0.200"(5.0mm) |
ASTM D374 |
| Specific Gravity |
3.0 g/cc |
ASTM D297 |
| Hardness |
45 Shore 00 |
ASTM 2240 |
| Operating Temp |
-45 ~ 200℃ |
****** |
| Dielectric Breakdown Voltage |
≥5500 VAC |
ASTM D149 |
| Dielectric Constant @1MHz |
6.0MHz |
ASTM D150 |
| Volume Resistivity |
≥1.0X1012 Ohm-cm |
ASTM D257 |
| Fire rating |
94 V0 |
UL E331100 |
| Thermal conductivity |
3.0 W/m-K |
ASTM D5470 |
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection.The storage condition is low temperature anddry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
