Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-16-38UF
Document: TIF100-16-38UF_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Payment Terms: T/T
Supply Ability: 10000/day

LED Light 1.6W/m.k Thermal Gap Filler Providing Superior Thermal Conductivity And Flexibility For Uneven Surface Heat Transfer Applications

Description
Products Name: LED Light 1.6W/m.k Thermal Gap Filler Providing Superior Thermal Conductivity And Flexibility For Uneven Surface Heat Transfer Applications Thickness: Available In Varies Thicknes
Keywords: Thermal Gap Filler Hardness: 75 Shore 00
Construction: Ceramic Filled Silicone Elastomer Density: 2.1 G/cm³
Color: Deep Red Thermal Conductivity: 1.6W/mK
Application: For Uneven Surface Heat Transfer Applications
Highlight:

high temperature phase change materials

,

thermal conductivity silicone

LED Light 1.6W/m.k Thermal Gap Filler
Providing superior thermal conductivity and flexibility for uneven surface heat transfer applications
Product Overview
The TIF®100-16-38UF Series is a structurally supportive thermal pad designed to provide excellent heat dissipation while ensuring structural support and durability. It reliably fills interface gaps, transfers heat, and offers mechanical support for stacked components, resisting compressive deformation. This product is ideal for applications requiring a balance between heat dissipation, insulation, and mechanical stability.
Key Features
  • Good thermal conductivity: 1.6 W/mK
  • Naturally tacky, requiring no additional adhesive coating
  • Soft and compressible for low-stress applications
  • Available in various thicknesses
Applications
  • Monitoring power boxes
  • AD-DC power adapters
  • Rainproof LED power systems
  • Waterproof LED power systems
  • SMD LED modules
  • LED flexible strips and LED bars
  • Home appliance industry
  • Power modules
  • Wearable devices
  • Solar photovoltaic panels
  • LED lighting fixtures
Technical Specifications
Property Value Test Method
Color Deep red Visual
Construction Ceramic filled silicone elastomer -
Density (g/cm³) 2.1 ASTM D792
Thickness Range (inch/mm) 0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.00
ASTM D374
Hardness (Shore 00) 75 | 75 ASTM 2240
Operating Temperature (°C) -40 to 200 -
Breakdown Voltage (V/mm) ≥ 5500 ASTM D149
Dielectric Constant @1Mhz 5.5 ASTM D150
Volume Resistivity (Ohm-meter) ≥1.0×10¹² ASTM D257
Thermal Conductivity (W/m-K) 1.6 | 1.6 ASTM D5470 | ISO22007
Fire Rating V-0 UL 94 (E331100)
Product Specifications

Standard Thickness: 0.010" (0.25 mm) – 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm × 406 mm)

Component Codes

Reinforcement Fabric: FG (Fiberglass)

Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

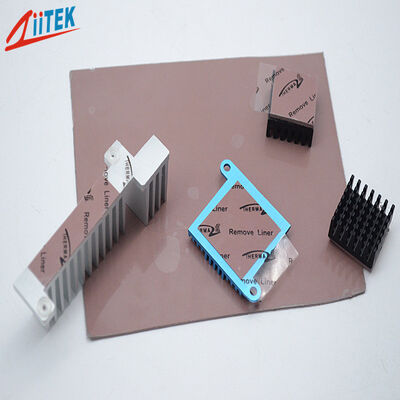

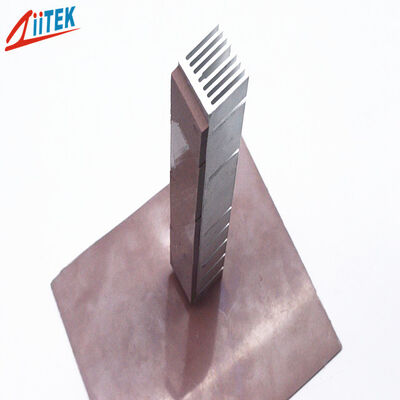

TIF®100-16-38UF Series Thermal Gap Filler product image
Company Profile
Dongguan Zhaoke Electronic Material Technology Co., Ltd. was established in 2006 and is a high-tech enterprise specializing in the research, development, production, and sales of thermal interface materials. We primarily produce: thermal gap fillers, low melting point thermal interface materials, thermal insulators, thermal adhesive tapes, thermal interface pads, thermal greases, thermal plastics, silicone rubber, and silicone rubber foam. We adhere to the business philosophy of "survival by quality, development by quality," and continue to provide the most efficient and best service for new and existing customers with excellent quality in the spirit of rigor, pragmatism, and innovation.
Dongguan Zhaoke Electronic Material Technology manufacturing facility
Frequently Asked Questions
Q: What kind of packaging do you offer?
A: During the packaging process, we take preventive measures to ensure that the goods remain in good condition during storage and delivery.
Q: Do big buyers have promotional prices?
A: Yes, if you are a major buyer in a specific area, Ziitek will provide you with promotional prices to help you start your business. Buyers with long-term cooperation receive better pricing.
Q: Are you a trading company or manufacturer?
A: We are a manufacturer based in China.
