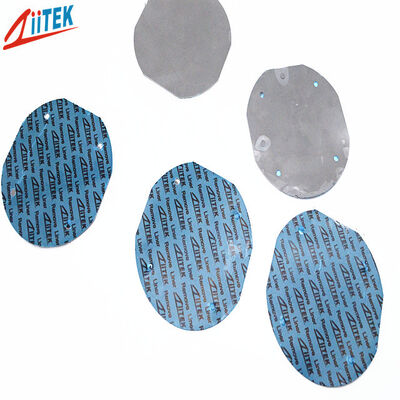

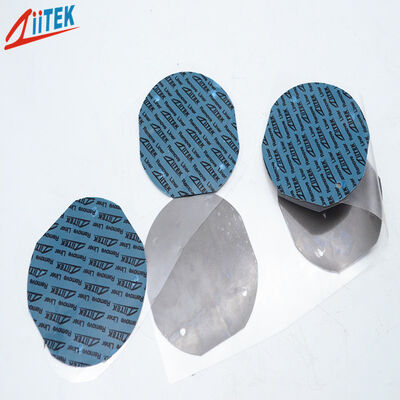

Ultra Soft Thermal Pad 3.0W High-Performance Silicone Gap Pads For Electronic Components

Ultra Soft Thermal Pad 3.0W High-Performance Silicone Gap Pads For Electronic Components
Ultra Soft Thermal Pad 3.0W High-Performance Silicone Gap Pads For Electronic Components
video play

Large Image :  Ultra Soft Thermal Pad 3.0W High-Performance Silicone Gap Pads For Electronic Components

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF500-30-11ES
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Payment Terms: T/T
Supply Ability: 10000/day
Contact Now
Detailed Product Description
Products Name: Ultra Soft Thermal Pad 3.0W High-Performance Silicone Gap Pads For Electronic Components Hardness: 12 Shore 00
Thickness: 0.25mm~5.0mmT Construction: Ceramic Filled Silicone Elastomer
Color: Dark Gray Thermal Conductivity& Compostion: 3.0W/m-K
Continuos Use Temp: -40℃ To 200℃ Keywords: Ultra Soft Thermal Pad
Specific Gravity: 3.15g/cc Application: Electronic Components

Ultra Soft Thermal Pad 3.0W High-Performance Silicone Gap Pads For Electronic Components



TIF®500-30-11ES Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines higt thermal conductivity with a near-fluid ultimate softness, ensuring perfect filling of the contact interface even under ultra-low mounting pressure,completely eliminating air thermal resistance,and providing superior thermal solutions and physical protection for the most precise and higt heat flux electronic components.



Features:


> High thermal conductivity
> Extremely soft

> Low compression stress effectively protects sensitive components
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance


Applications:



Electronic components, 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.



Typical Properties of TIF®500-30-11ES Series
Property Value Test method
Color Dark Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.15 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.0)
Hardness 12 Shore 00 12 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL94 (E331100)
Thermal conductivity 3.0 W/m-K ASTM D5470
3.0 W/m-K ISO22007



Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mm×406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Ultra Soft Thermal Pad 3.0W High-Performance Silicone Gap Pads For Electronic Components 0
Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company Profile



Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.



Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.



FAQ



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
