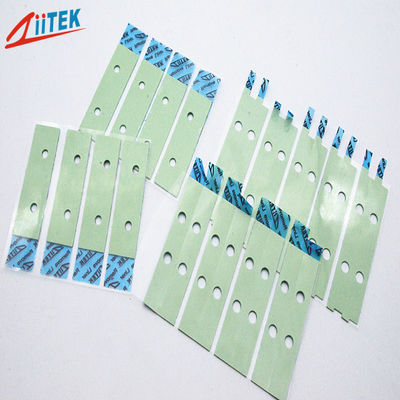

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads
Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads
Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads

Large Image :  Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-07S Series
Document: TIF100-07S_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-7 work days
Payment Terms: T/T
Supply Ability: 100000pcs/day
Contact Now

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads

Description
Products Name: Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad New Energy Vehicle Silicone Themals Conductive Pads Thermal Conductivity: 1.5W/m-K
Color: Green Sample: Sample Free
Thickness: 0.010"(0.25mm)~0.200"(5.0mm) Application: Radiator New Energy Vehicle Cooling
Hardness: 45/65 Shore 00 Continuous Use Temp: -40 To 200℃
Keywords: Thermal Gap Filler Pad
Highlight:

1.5W thermal gap filler pad

,

silicone thermal conductive pads

,

new energy vehicle thermal pad

Radiator Thermal Pad 1.5W 0.5mm~5.0mm Thermal Gap Filler Pad
The TIF®100-07S Series is engineered for optimal gap heat transfer, filling spaces between heating and cooling components while providing insulation, damping, and sealing functions. This material supports equipment miniaturization and ultra-thin designs, offering wide thickness range applications as an excellent thermal conductivity filler.
Key Features
  • Good thermal conductivity: 1.5 W/mK
  • Moldable for complex parts
  • Soft and compressible for low stress applications
  • Outstanding thermal performance
  • Easy release construction
  • Electrically isolating
  • High durability
Applications
  • Cooling components to chassis or frame
  • High speed mass storage drives
  • Heat sinking housing at LED-lit BLU in LCD
  • LED TV and LED-lit lamps
  • RDRAM memory modules
  • Micro heat pipe thermal solutions
  • Automotive engine control units
  • Telecommunication hardware
  • Handheld portable electronics
  • Semiconductor automated test equipment (ATE)
  • CPU applications
Technical Specifications
Property Value Test Method
Color Green Visual
Construction & Composition Ceramic filled silicone elastomer -
Density (g/cm³) 2.2 ASTM D792
Thickness Range (inch/mm) 0.010~0.020 | 0.030~0.200
0.25~0.50 | 0.75~5.0		 ASTM D374
Hardness (Shore 00) 65 | 45 ASTM 2240
Recommended Operating Temperature -40 to 200℃ -
Breakdown Voltage (V/mm) ≥5500 ASTM D149
Dielectric Constant @ 1MHz 4.5 ASTM D150
Volume Resistivity ＞1.0×10¹² Ohm-meter ASTM D257
Flame Rating V-0 UL 94 (E331100)
Thermal Conductivity 1.5 W/m-K ASTM D5470 / ISO22007
Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm×406 mm)

Component Codes

Reinforcement Fabric: FG (Fiberglass)

Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

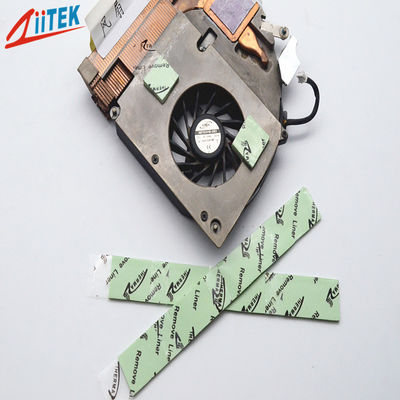

Radiator Thermal Pad product image showing material structure and application
Packaging & Lead Time

Packaging Details:

  • PET film or foam for protection
  • Paper card to separate each layer
  • Export carton inside and outside
  • Customized packaging available per customer requirements

Lead Time: Quantity: 5000 pieces - Estimated time: To be negotiated

Manufacturer Profile
Ziitek is a high-tech enterprise specializing in the R&D, manufacturing, and sales of thermal interface materials (TIMs). With extensive experience in thermal management solutions, we provide advanced production equipment, comprehensive testing capabilities, and fully automatic coating production lines for high-performance thermal products including silicone pads, graphite sheets, thermal tapes, insulation pads, ceramic pads, phase change materials, and thermal greases. All products comply with UL94 V-0, SGS, and ROHS standards.
Certifications
  • ISO9001:2015
  • ISO14001:2004
  • IATF16949:2016
  • IECQ QC 080000:2017
  • UL Certified
Our Services

Online Service: 12-hour support with fast inquiry response

Working Hours: 8:00 AM - 5:30 PM, Monday to Saturday (UTC+8)

Staff: Well-trained, experienced English-speaking team

Packaging: Standard export carton or customized with customer information

Samples: Free samples available

After-Service: Comprehensive support and satisfactory solutions for any product issues

Ziitek company thermal materials production and testing facilities
