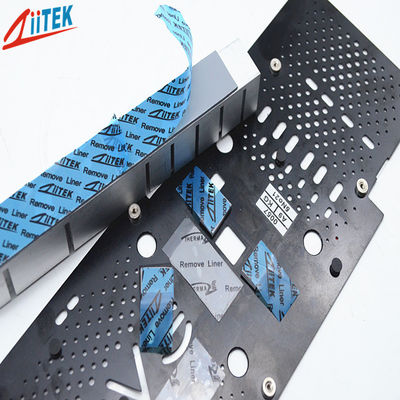

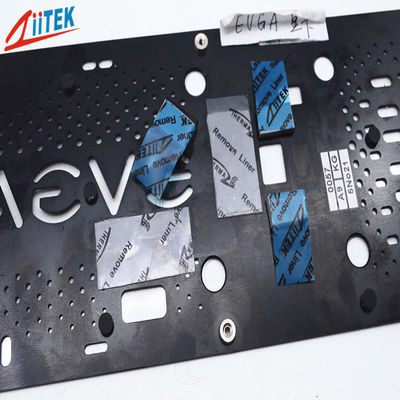

Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads For GPU CPU Cooling

Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads For GPU CPU Cooling

Large Image :  Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads For GPU CPU Cooling

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF560-20-11US
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Products Name: Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads For GPU CPU Cooling Thickness: 1.5mmT
Thermal Conductivity& Compostion: 2.0W/m-K Continuos Use Temp: -40℃ To 200℃
Construction: Ceramic Filled Silicone Elastomer Specific Gravity: 2.7g/cc
Hardness: 20±5 Shore 00 Color: Gray
Keywords: Laptop Termal Pad Application: Battery Led Laptop GPU CPU Cooling

Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads For GPU CPU Cooling



TIF560-20-11US series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.



Features:
> Excellent thermal conductivity 2.0W/mK

> Moldability for complex parts
> Soft and compressible for low stress applications
> Easy release construction
> Electrically isolating
> High durability


Applications:

> Cooling components to the chassis of frame
> CPU and GPU processors and other chipsets
> High-performance computing (HPC)

> Industrial equipment
> Network communication devices

> New energy vehicles
> LED CPU GPU MOS

> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure

Typical Properties of TIF560-20-11US Series
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer *****
Specific Gravity 2.7 g/cc ASTM D792
thickness 1.5mmT ASTM D374
Hardness (thickness<1.0mm) 20±5 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ******
Dielectric Breakdown Voltage ≥5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity ≥1.0*1012 Ohm-cm ASTM D150
Fire rating 94 V0 UL (E331100)
Thermal conductivity 2.0 W/m-K ASTM D5470

Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.



Product Specification
Product Thicknesses: 0.020"(0.50mm)-0.200"(5.00mm)
Product Sizes:8" x 16"(203mm x406mm)
Custom die-cut shapes and thicknesses are available.Please contact us for details.
Store in a cool, dry place, away from fire and sunlight.
Factory Custom Size Battery Led Laptop Termal Pad 2W 1.5mm Silicone Themals Conductive Pads For GPU CPU Cooling 0
Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
