Naturally Tacky 6.5W Ultra Soft Thermal Conductive Gap Filler Pad For LED CPU GPU EV Battery

Naturally Tacky 6.5W Ultra Soft Thermal Conductive Gap Filler Pad For LED CPU GPU EV Battery

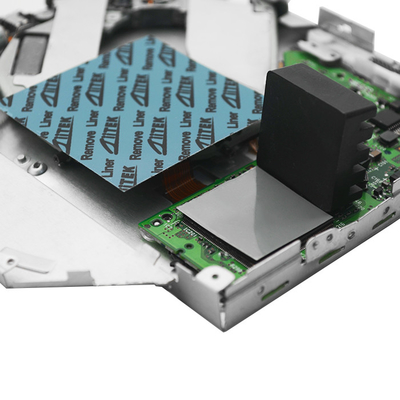

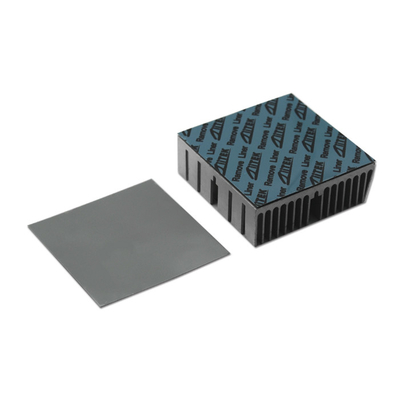

TIF^®100 6520-11 series of thermal interface materials is specifically designed to fill air gaps between heat-generating components and heat sinks or metal baseplates.lt offers excellent compliance, allowing it to conform tightly to heat sources with varying shapes and height differences. Even in confined or irregular spaces,it maintains stable thermal conductivity, enabling efficient heat tansfer from discrete components or the entire PCB to the metal housing or heat sink ,This significantly improves the heat dissipation efficiency of electronic components, thereby enhancing operational stability and extending device lifespan.

Features

> Excellent thermal conductivity 6.5W/mK

> Moldability for complex parts
> Soft and compressible for low stress applications

> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available

Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> CPU And GPU processors and other chipsets
> Display card
> Mainboard/mother board
> Memory Modules
> Audio and video components
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.
