Silicone Thermal Grease 1Kg High Conductivity for Heat Sink and Electronic Component 5.0 W/mK Metal Oxide Filled Construction

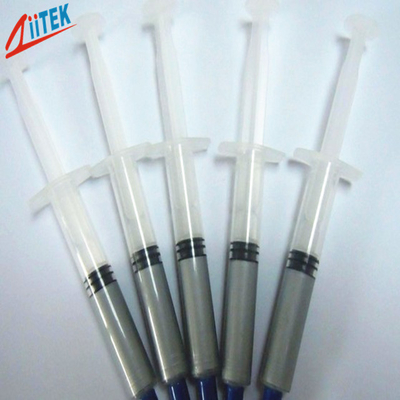

Large Image : Silicone Thermal Grease 1Kg High Conductivity for Heat Sink and Electronic Component 5.0 W/mK Metal Oxide Filled Construction

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIG780-50

Payment & Shipping Terms:

Minimum Order Quantity:	1KG
Packaging Details:	1KG/CAN
Delivery Time:	3-5 work days
Supply Ability:	100KG/Days

Contact Now

Detailed Product Description

Product Name:	Thermal Grease 5.0W/mk 1Kg Silicon High Conductivity For Heat Sink And Electronic Component	Color:	Gray
Construction & Compostion:	Metal Oxide Filled Silicone Oil	Thermal Conductivity:	5.0 W/mK
Continuous Usd Temp:	-45~200℃	Viscosity（mPa.s）:	200000
Keywords:	Thermal Grease
Highlight:	Electronic Component Thermal Grease , Heat Sink Thermal Grease , 5.0 W/mK Thermal Grease

Thermal grease 5.0W/mk 1Kg Silicon High Conductivity for Heat Sink and Electronic Component

TIG™780-50 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issues.

TIG™780-50 is a heat conducting product in the shape of paste. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance.Consequently, the heat dissipation efficiency is far superior to that offered by others.

TIG780-50 Series Datasheet-(E)-REV01.pdf

Silicone Thermal Grease 1Kg High Conductivity for Heat Sink and Electronic Component 5.0 W/mK Metal Oxide Filled Construction 0

Features
> Low thermal impedance

> Non-toxic and environmentally safe

> Excellent long term stability

> Thoroughly wets out contact surfaces to create. low thermal impedance.

Applications
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices

Typical Properties of TIG™780-50 Series
ProductName	TIG™780-50	Test Method
Color	Gray	Visual
Construction & Compostion	Heat conduction filler / silicone oil	Ziitek Test Method
Specific Gravity(g/cm³)	2.3	ASTM D297
Thermal line thickness(mm)	0.031	ASTM D374
Thermal Conductivity	5.0W/mK	ASTM D5470
Thermal lmpedance(℃.in²/W) @10psi	0.023	ASTM D5470
Thermal lmpedance(℃.in²/W) @50psi	0.018	ASTM D5470
Continuous Use Temp (℃)	-45~200℃	Ziitek Test Method
Viscosity(mPa.s)	200000	GB/T 10247

Package:

Packing specification 0.5kg,1kg,2kg; For other specifications, please contact us.

Storage:

Store from 5° C to 25°C with a maximum humidity of 70%.Do not store in freezer or refrigerator below 0° C.Safe disposal method does not require special protection.The storage condition is low temperature and dry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.

Company profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017
