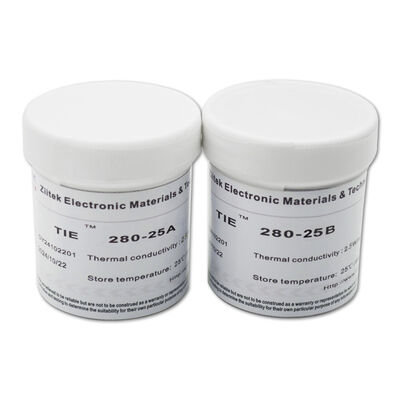

Two-Component Thermal Conductive Epoxy Resin Potting Compound Glue For Automotive Starters Potting
TIE®280-25AB is a two-component epoxy resin sealantwithgood thermal conductivity and room temperature curing properties. It can complete the curing process at room temperature and is convenient for on-site operation and construction. And this material has excellent fire and flame retardant properties, which can meet the high safety requirements of electronic devices.It is particularly suitable for the sealing protection of capacitors,small electronic components,and precision circuit modules,and can provide long-term reliable mechanical support and environmental protectionfor sensitive components.
Features
> Good thermal conductive: 2.5W/mK
> Excellent insulation and smoothly sourface.
> Low shrinkage
> Low viscosity, expediting air releaseed.
> Excellent in solvents and water proof.
> Longer life time.
> Excellent thermal shock efficiecy and impact resistance
Application
> Automotive starters potting; General potting Thermal detector potting
> Ferrite adhesion; TIP type LED; Good adhesion to aromatic polyester
> Relay sealant; Good adhesion to rubber, ceramics PCB and plastics
> Power transformers and coils; Potting capacitors Potting of small electrical devices
> Adhesion to metal glass and plastic LCD & substrates adhesion; Coating and sealant; Coil ; IGBTS; Transformer; Fire retardant
> Optical / medical component adhesive
| Typical Properties of TIE®280-25AB Series |
| Uncured Material Properties |
| Property |
Value |
Test Method |
| Construction |
Epoxy resin |
- |
| Color/Part A |
Black |
Visual |
| Color/Part B |
Gray |
Visual |
| Part A Viscosity (mPa·S) |
50,000 |
ASTM D2196 |
| Part B Viscosity (mPa·S) |
30,000 |
ASTM D2196 |
| Mix Ratio |
1:1 |
- |
| Shelf life (Month) |
12(Unopened) |
- |
| Cure Schedule |
| Cure @ 25°℃ |
6 hours |
Ziitek Test Method |
| Cure @ 70°C |
35 mins |
Ziitek Test Method |
| Cure @ 100℃ |
15 mins |
Ziitek Test Method |
| Cure Material Properties |
| Color |
Gray |
Visual |
| Density(g/cm³) |
2.0 |
ASTM D792 |
| Hardness (Shore D) |
85 |
ASTM D2240 |
| Breakdown Voltage (V/mm) |
≥10,000 |
ASTM D149 |
| Dielectric Constant @1MHz |
4.2 |
ASTM D150 |
| Volume Resistivity (Ohm·cm) |
＞1.0x1012 |
ASTM D257 |
| Thermal Conductivity (W/m·K) |
2.5 |
ASTM D5470 |
| Recommended Operating Temperature (℃) |
-40~160 |
- |
| Flame Rating |
V-0 |
UL 94 |
Product packaging
1KG A/B for each tank.
5KG A/B each.
10KG A/B each.
