Product Details:
Payment & Shipping Terms:
|
| Thermal Conductivity: | 1.8 W/m-K | Hardness: | 25 Shore 00 |
|---|---|---|---|
| Specific Gravity: | 2.95 G/cc | Continuos Use Temp: | -50 To 200℃ |
| Outgassing(TML): | 0.30% | ||
| High Light: | Electronic Devices Thermal Conductive Silicone Pad,1.8W/M-K Thermal Conductive Silicone Pad,2.95 G/CC Thermally Conductive Pad |
||

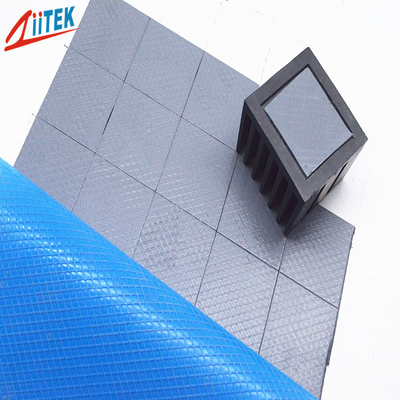

Factory supply UL recognized 1.8W/M-K Thermal Conductive Silicone Pad 2.95 G/CC High durability For Electronic Devices

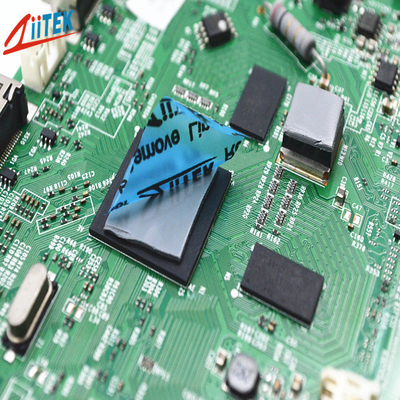

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
The TIF™580-18-56U Series is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features
| RoHS compliant 1.8 W/mK |
| UL recognized |
| Fiberglass reinforced for puncture, shear and tear resistance |
| Easy release construction |
| Electrically isolating |
| High durability |
Applications
| Monitoring the Power Box |
| AD-DC Power Adapters |
| Rainproof LED Power |
| Waterproof LED Power |
| SMD LED module |
| LED Flesible strip, LED bar |
| LED PanelLight |
| LED floor light |
| routers |
|
Typical Properties of TIF™580-18-56U
|
||||
|
Color
|
Green |
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
***
|
10mils / 0.254 mm
|
0.16
|
|
20mils / 0.508 mm
|
0.20
|
|||
|
Specific Gravity
|
2.95 g/cc
|
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
|
40mils / 1.016 mm
|
0.36
|
|||
|
Heat Capacity
|
1 l/g-K
|
ASTM C351
|
50mils / 1.270 mm
|
0.42
|
|
60mils / 1.524 mm
|
0.48
|
|||
|
Hardness
|
25 Shore 00
|
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
|
80mils / 2.032 mm
|
0.63
|
|||
|
Outgassing(TML)
|
0.30%
|
ASTM E595
|
90mils / 2.286 mm
|
0.73
|
|
100mils / 2.540 mm
|
0.81
|
|||
|
Continuos Use Temp
|
-50 to 200℃
|
***
|
110mils / 2.794 mm
|
0.86
|
|
120mils / 3.048 mm
|
0.93
|
|||
|
Dielectric Breakdown Voltage
|
>10000 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
|
140mils /3.556 mm
|
1.08
|
|||
|
Dielectric Constant
|
4.5 MHz
|
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
|
160mils / 4.064 mm
|
1.20
|
|||
|
Volume Resistivity
|
4.2X1012
Ohm-meter |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
|
180mils / 4.572 mm
|
1.32
|
|||
|
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
|
200mils / 5.080 mm
|
1.52
|
|||
|
Thermal conductivity
|
1.8 W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
