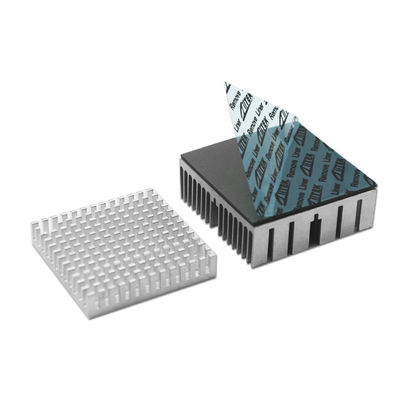

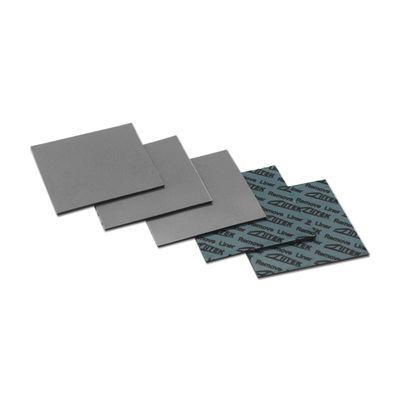

Thermal Gap Filler with 1 Millimeter Thickness Designed for in LED Lighting and Other Heat Sensitive Electronic Devices

Large Image : Thermal Gap Filler with 1 Millimeter Thickness Designed for in LED Lighting and Other Heat Sensitive Electronic Devices

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF840QE
Document:	TIF800QE_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Payment Terms:	T/T
Supply Ability:	100000pcs/day

Contact Now

Thermal Gap Filler with 1 Millimeter Thickness Designed for in LED Lighting and Other Heat Sensitive Electronic Devices

Description

Products Name:	High Thermally Conductive Filler Pads TIF840QE LED Light Application 1mm Thickness	Color:	Gray
Thermal Conductivity:	13.0W/mK	Hardness（Shore00 ＜0.75mm）:	35/40
Application:	LED Lighting	Dielectric Constant @1MHz:	7.0
Fire Rating:	94-V0	Keywords:	Thermally Conductive Filler Pads
Highlight:	thermally conductive filler , high temperature phase change materials , High Thermally Conductive Filler Pads

Thermal Gap Filler with 1 Millimeter Thickness for LED Lighting and Heat Sensitive Electronics

TIF® 840QE thermally conductive interface materials are designed to fill air gaps between heating elements and heat dissipation components. Their flexibility and elasticity make them ideal for coating uneven surfaces, effectively transferring heat to metal housings or dissipation plates, thereby enhancing the efficiency and lifespan of heat-generating electronic components.

Key Features

Excellent thermal conductivity: 13.0W/mK
Naturally tacky surface requiring no additional adhesive
High compliance adapts to various pressure application environments
Available in multiple thickness options
Standard thickness: 1mm

Applications

Heat dissipation structures for radiators
Telecommunication equipment
Automotive electronics
Electric vehicle battery packs
LED drivers and lamps
Handheld portable electronics
Semiconductor automated test equipment (ATE)
CPU cooling solutions
Display card thermal management
Motherboard applications

Technical Specifications: TIF® 800QE Series

Property	Value	Test Method
Color	Gray	Visual
Construction	Ceramic filled silicone elastomer	ZKTM J024
Density (g/cm³)	3.45	ASTM D792
Thickness Range (inch/mm)	0.012~0.020 \| 0.030~0.200 0.30~0.50 \| 0.75~5.00	ASTM D374
Hardness (Shore 00)	40 \| 35	ASTM 2240
Recommended Operating Temperature	-40 to 200℃	ZKTM J025
Breakdown Strength (V/mm)	≥5500	ASTM D149
Dielectric Constant @1MHz	7.0	ASTM D150
Volume Resistivity (Ohm-meter)	＞1.0×10¹²	ASTM D257
Flame Rating	V-0	UL 94 (E331100)
Thermal Conductivity (W/m-K)	13.0	ASTM D5470

Product Specifications

Standard Thickness: 0.012" (0.30mm) ~ 0.200" (5.00mm)

Standard Size: 16" × 16" (406mm × 406mm)

The TIF® series is available in custom shapes and various forms. For other thicknesses or additional information, please contact us.
