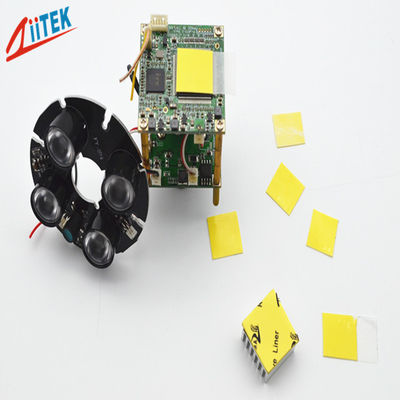

Ultra Soft 3mm Thickness Thermal Gap Filler Pad For Robotics And AI Thermal Management

Large Image : Ultra Soft 3mm Thickness Thermal Gap Filler Pad For Robotics And AI Thermal Management

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF4120
Document:	TIF400_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-5work days
Payment Terms:	T/T
Supply Ability:	100000pcs/day

Contact Now

Ultra Soft 3mm Thickness Thermal Gap Filler Pad For Robotics And AI Thermal Management

Description

Products Name:	Ultra Soft 3mm Thickness Thermal Gap Filler Pad For Robotics And AI Thermal Management	Color:	Yellow
Thickness:	3mmT	Density(g/cm³):	2.5
Fire Rating:	94-V0	Keywords:	AI Thermal Management
Thermal Conductivity:	2.0W/mK	Recommended Operating Temperature (℃):	-40-200℃
Highlight:	high temperature phase change materials , thermal conductivity silicone , 3mm Thermal Gap Filler Pad

Ultra Soft 3mm Thickness Thermal Gap Filler Pad For Robotics And AI Thermal Management

About Ziitek

Founded in 2006, Ziitek is a high-tech enterprise focused on the development and manufacture of thermal conduction, heating, sealing, and EMI products. With headquarters in Dongguan and production bases in Kunshan, Taiwan Province, and Vietnam, the company serves global customers in new energy, AI, 5G, aerospace, and other fields with innovative thermal management solutions.

TIF^®400 Series Product Overview

The TIF® 400 Series is a well-balanced, general-purpose thermal pad offering good thermal conductivity and moderate hardness. This balanced design provides excellent surface conformity and ease of use, effectively transferring heat while providing basic physical protection for electronic components.

Key Features

Good thermal conductivity: 2 W/mK
Thickness: 3mm
Naturally tacky - no additional adhesive coating required
Soft and compressible for low-stress applications

Applications

Cooling components to chassis or frame
High-speed mass storage drives
Heat sinking housing at LED-lit BLU in LCD
LED TV and LED-lit lamps
RDRAM memory modules
Micro heat pipe thermal solutions
Automotive engine control units
Telecommunication hardware
Handheld portable electronics
Semiconductor automated test equipment (ATE)

Technical Specifications TIF^®400 Series

Property	Value	Test Method
Color	Yellow	Visual
Construction	Ceramic filled silicone elastomer	-
Thickness range	0.010"~0.020" (0.25~0.50mm) \| 0.030"~0.200" (0.75~5.00mm)	ASTM D374
Hardness (Shore 00)	65 \| 45	ASTM 2240
Density (g/cm³)	2.5	ASTM D792
Operating Temperature	-40°C to 200°C	-
Breakdown Strength	≥5500 V/mm	ASTM D149
Dielectric Constant @1MHz	5.0	ASTM D150
Volume Resistivity	＞1.0×10¹² Ohm-cm	ASTM D257
Thermal Conductivity	2.0 W/m-K	ASTM D5470 / ISO22007
Flame Rating	V-0	UL94 (E331100)

Product Specifications

Standard Thickness: 0.010" (0.25 mm) – 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)

Standard Size: 16" × 16" (406 mm × 406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass)

Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

Certifications

ISO9001:2015

ISO14001:2004

IATF16949:2016

IECQ QC 080000:2017

Frequently Asked Questions

How much compression is required for a Thermal Silicone Pad?

The optimal compression range varies depending on the material. It should be determined based on the pad's hardness, thickness, and product structure. A single fixed compression ratio should not be applied to all thermal pad applications.

Can Thermal Silicone Pads be used in high-temperature environments?

Yes, but the appropriate product must be selected according to its specified operating temperature range. Applications such as automotive electronics, power supplies, and industrial equipment require particular attention to long-term performance after high-temperature aging.

Do Thermal Silicone Pads provide electrical insulation?

Many silicone-based thermal pads can provide both thermal conductivity and electrical insulation. However, the actual insulation performance should be evaluated based on product-specific test data, such as dielectric strength and volume resistivity.

Can Thermal Silicone Pads be flame retardant?

Yes. Certain thermal silicone pads can be designed to meet specific flame-retardant requirements, such as UL 94 ratings. The actual flame-retardant rating should always be verified against the product's official test report or technical datasheet.
