Thermal Gap Filler Offering High Thermal Conductivity And Natural Tackiness For Easy Installation In Thermal Interfaces

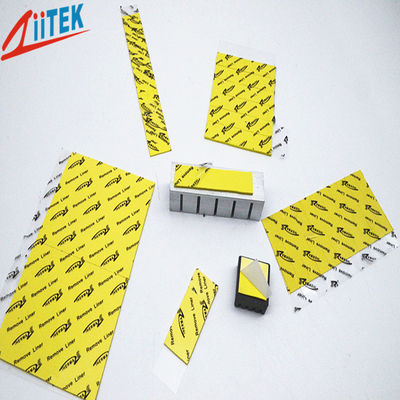

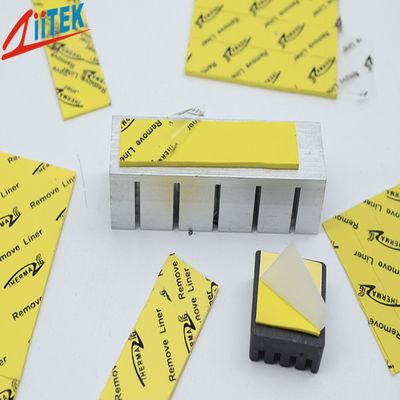

Large Image : Thermal Gap Filler Offering High Thermal Conductivity And Natural Tackiness For Easy Installation In Thermal Interfaces

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF460-A2
Document:	TIF400_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	1000pcs/bag
Delivery Time:	3-7 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/day

Contact Now

Thermal Gap Filler Offering High Thermal Conductivity And Natural Tackiness For Easy Installation In Thermal Interfaces

Description

Features:	Two Side Adhesive	Products Name:	Thermal Gap Filler Offering High Thermal Conductivity And Natural Tackiness For Easy Installation In Thermal Interfaces
Color:	Yellow	Thickness:	1.5mmT
Hardness:	45/60 Shore 00	Fire Rating:	94-V0
Keywords:	Thermal Gap Filler	Application:	Home Appliance Industry
Thermal Conductivity:	2.0W/m.K
Highlight:	thermally conductive filler , high temperature phase change materials , Yellow Gap Filler Pad

Thermal Gap Filler Offering High Thermal Conductivity And Natural Tackiness For Easy Installation In Thermal Interfaces

Product Overview

The TIF^®460-A2 Series is a well-balanced, general-purpose thermal pad offering good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Key Features

Good thermal conductivity: 2.0 W/mK
Naturally tacky - no additional adhesive coating required
Soft and compressible for low stress applications
Available in various thicknesses

Applications

Cooling components to chassis or frame
High-speed mass storage drives
Heat sinking housing at LED-lit BLU in LCD
LED TV and LED-lit lamps
RDRAM memory modules
Micro heat pipe thermal solutions
Automotive engine control units
Telecommunication hardware
Handheld portable electronics
Semiconductor automated test equipment (ATE)

Technical Specifications of TIF^®️400 Series

Property	Value	Test Method
Color	Yellow	Visual
Construction	Ceramic filled silicone elastomer	ZKTM J024
Density (g/cm³)	2.5	ASTM D792
Thickness Range (inch/mm)	0.010~0.020 \| 0.030~0.200 0.25~0.50 \| 0.75~5.00	ASTM D374
Hardness (Shore 00)	45	ASTM 2240
Recommended Operating Temperature	-40 to 200℃	ZKTM J025
Breakdown Strength (V/mm)	≥5500	ASTM D149
Dielectric Constant @1MHz	5.0	ASTM D150
Volume Resistivity (Ohm-meter)	＞1.0×10¹²	ASTM D257
Flame rating	V-0	UL 94 (E331100)
Thermal conductivity (W/m-K)	2.0	ASTM D5470

Product Specifications

Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm), with increments of 0.010" (0.25 mm)

Standard Size: 16"×16" (406 mm×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)

The TIF^® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
