|Color:||Dark Grey||Thermal Conductivity:||2 W/mK|
|Product Name:||Zpaster160-20-11F||Hardness:||65shore 00|
|Dielectric Constant:||5.5 MHz||Thickness:||1.5mmT|
silicone gap filler,
silicone thermal pad

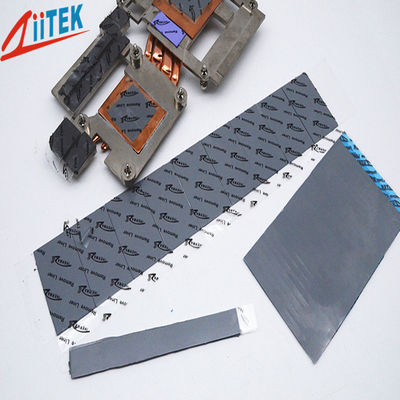

New thermal management solution products 1.5mmT silicone-free thermal pad Zpaster160-20-11F 2W conductivity
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Zpaster160-20-11F is a high performance and compatible non-silicone material of the thermal conductive interface materials.The role is to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.
It applies to the liner based on silicone suitably. The flexibility and elasticity make it suited to the coating of the very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
>Good thermal conductive:2.0 W/mK
>Soft and Compressible for low stress applications
>Available in varies thickness
>Car Battery & Power Supply
>Graphics Card Thermal Module
>Set Top Box
> Medical devices
>SFP optical module
|Typical Properties of Z-Paster160-20-11F Series|
|Color||Dark grey||Visual||Dielectric Breakdown Voltage (T= 1mm above)||>5000 VAC||ASTM D149|
|Construction||Silicone-free The metal oxide fills||**********||Dielectric Constant||5.5 MHz||ASTM D150|
|Thermal Conductivity||2.0 W/mK||ASTM D5470||Volume Resistivity||6.0X1013 Ohm-meter||ASTM D257|
|Hardness||65 Shore 00||ASTM 2240||Continuous Use Temp||– 20 To 125 ℃||**********|
|Specific Gravity||2.65 g/cc||ASTM D297||Outgassing (TML)||0.30%||ASTM E595|
|Thickness range||1.5mm||ASTM D374||Flame Rating||94 V0||equivalent to|
0.010-inch to 0.200-inch (0.25mm to 5.0mm)
Proprietary NS1 option available to eliminate tack from one side to aid in handling.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
Contact Person: Dana
