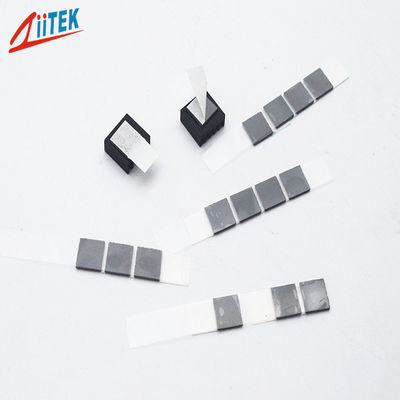

4.0W Insulation Silicone Thermal Conductive Sheet Silicone Thermal Transfer Pad For Battery CPU

4.0W Insulation Silicone Thermal Conductive Sheet Silicone Thermal Transfer Pad For Battery CPU
4.0W Insulation Silicone Thermal Conductive Sheet Silicone Thermal Transfer Pad For Battery CPU
video play

Large Image :  4.0W Insulation Silicone Thermal Conductive Sheet Silicone Thermal Transfer Pad For Battery CPU

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-40-10S
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Product Name: 4.0W Insulation Silicone Thermal Conductive Sheet Silicone Thermal Transfer Pad For Battery CPU Thermal Conductivity& Compostion: 4.0W/m-K
Specific Gravity: 3.2 G/cc Keywords: Thermal Pad
Color: Gray Application: Battery CPU
Hardness: 45 Shore 00
Highlight:

gray high thermal conductivity gap pad

,

4w thermal silicone gap filler pad

,

UL recognized thermal silicone gap

4.0W Insulation Silicone Thermal Conductive Sheet Silicone Thermal Transfer Pad For Battery CPU



The TIF100-40-10S is an extremely soft gap filling material rated at a thermal conductivity of 4.0W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. ZiitekTIF100-40-10S is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.



Features:



> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available


Applications:

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF100-40-10S Series
Color Gray Visual
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200“(5.0mm) ******
Specific Gravity 3.2 g/cc ASTM D297
Hardness 45 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ***
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 1.0X10¹² Ohm-meter ASTM D257
Flame rating 94 V0 equivalent UL
Thermal conductivity 4.0W/m-K ASTM D5470

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

4.0W Insulation Silicone Thermal Conductive Sheet Silicone Thermal Transfer Pad For Battery CPU 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
