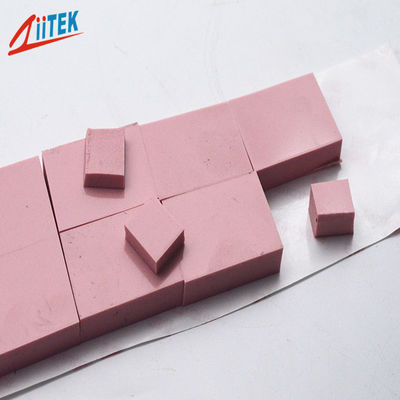

3.0W Silicon Thermal Gap Filler Pad For PC DVR Digital Video Recorder Set Top Box Applied

3.0W Silicon Thermal Gap Filler Pad For PC DVR Digital Video Recorder Set Top Box Applied
3.0W Silicon Thermal Gap Filler Pad For PC DVR Digital Video Recorder Set Top Box Applied
video play

Large Image :  3.0W Silicon Thermal Gap Filler Pad For PC DVR Digital Video Recorder Set Top Box Applied

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-30-25E
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Products Name: 3.2W Silicon Thermal Gap Filler Pad For PC DVR Digital Video Recorder Set Top Box Applied Thermal Conductivity: 3.0 W/m-K
Volume Resistivity: 1.0X10¹² Ohm-meter Color: PINK
Hardness: 35 Shore 00 Keywords: Thermal Gap Filler Pad
Thickness Range: 0.02"(0.5mm)~0.200"(5.0mm) Application: PC DVR Digital Video Recorder Set Top Box Applied
Highlight:

video recorder thermal conductive pad

,

3.2w thermal gap filler pad

,

cooling thermal conductive silicone pad

3.0W Silicon Thermal Gap Filler Pad For PC DVR Digital Video Recorder Set Top Box Applied



The TIF100-30-25E is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.


Features:



>  Good thermal conductive: 3.0W/mK
>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness

>  RoHS compliant
>  UL recognized
>  Easy release construction


Applications:



>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE

Typical Properties of TIF100-30-25E Series
Property Value Test method
Color Pink ***
Construction &Compostion Ceramic filled silicone elastomer ***
Specific Gravity 3.0 g/cc ASTM D297
Thickness range 0.02"(0.5mm)~0.200"(5.0mm) ASTM C351
Hardness 35 Shore 00 ASTM 2240
Outgassing(TML) 0.40% ASTM D412
Continuos Use Temp -45 to 200℃ ***
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 5.0 MHz ASTM D150
Volume Resistivity 1.0X10¹² Ohm-meter ASTM D257
Flame rating 94 V0 equivalent UL
Thermal conductivity 3.0 W/m-K ASTM D5470

3.0W Silicon Thermal Gap Filler Pad For PC DVR Digital Video Recorder Set Top Box Applied 0

Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.


Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
