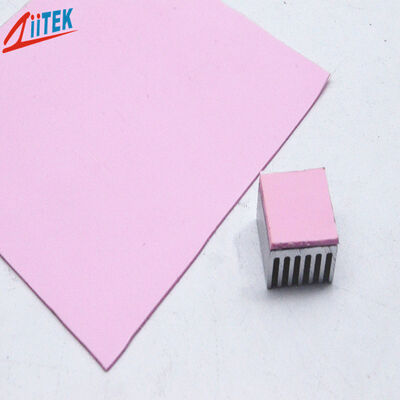

2022 high thermal conductivity 3.0W/m.K silicone thermal conductive pad TIF140-30-18E for LCD TV

2022 high thermal conductivity 3.0W/m.K silicone thermal conductive pad TIF140-30-18E for LCD TV
2022 high thermal conductivity 3.0W/m.K silicone thermal conductive pad TIF140-30-18E for LCD TV
video play

Large Image :  2022 high thermal conductivity 3.0W/m.K silicone thermal conductive pad TIF140-30-18E for LCD TV

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF140-30-18E
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Color: Dark Green Thickness: 1 MmT
Dielectric Breakdown Voltage: >10000 VAC Thermal Conductivity: 3 W
Construction & Compostion: Ceramic Filled Silicone Rubber Product Name: TIF140-30-18E
High Light:

thermally conductive pad

,

thermal conductive material

2022 high thermal conductivity 3.0W/m.K silicone thermal conductive pad TIF140-30-18E for LCD TV

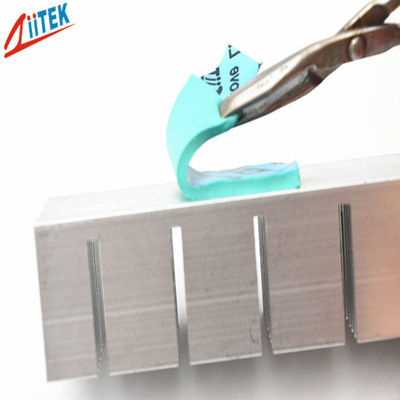

The TIF140-30-18E is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics.

Features:
> Good thermal conductive:3 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives

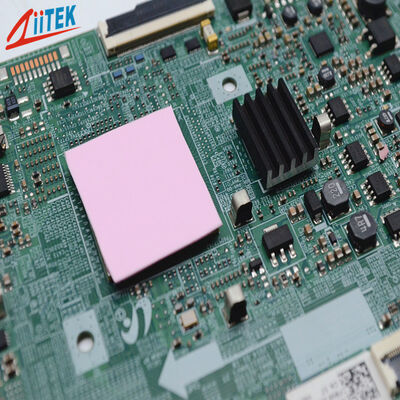

> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)




Typical Properties of TIF™ 140-30-18E Series
ColorDark greenVisualComposite ThicknesshermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber***10mils / 0.254 mm0.21
20mils / 0.508 mm0.27
Specific Gravity2.80 g /ccASTM D29730mils / 0.762 mm0.39
40mils / 1.016 mm0.43
Heat Capacity1 l /g-KASTM C35150mils / 1.270 mm0.50
60mils / 1.524 mm0.58
Hardness35 Shore 00ASTM 224070mils / 1.778 mm0.65
80mils / 2.032 mm0.76
Tensile Strength55 psASTM D41290mils / 2.286 mm0.85
100mils / 2.540 mm0.94
Continuos Use Temp-50 to 200℃***110mils / 2.794 mm1.00
120mils / 3.048 mm1.07
Dielectric Breakdown Voltage>10000 VACASTM D149130mils / 3.302mm1.16
140mils / 3.556 mm1.25
Dielectric Constant7.5 MHzASTM D150150mils / 3.810 mm1.31
160mils / 4.064 mm1.38
Volume Resistivity8X1012Ohm-meterASTM D257170mils / 4.318 mm1.43
180mils / 4.572 mm1.50
Fire rating94 V0equivalent UL190mils / 4.826 mm1.60
200mils / 5.080 mm1.72
Thermal conductivity3 W/m-KASTM D5470Visua l/ ASTM D751ASTM D5470




Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm)
0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm)
0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
