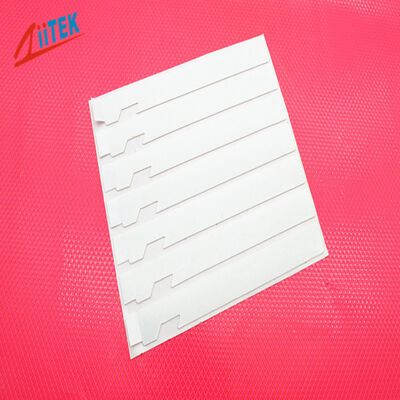

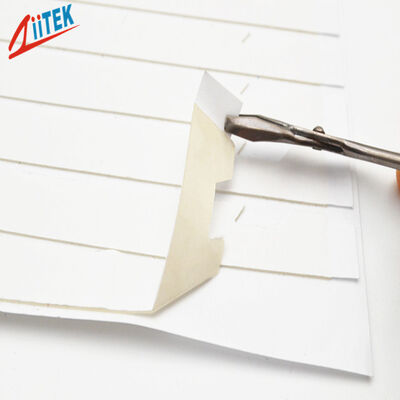

High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader

High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader
High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader
High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader

Large Image :  High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIA806AL
Document: TIA800AL_Data Sheet.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 10SQM
Price: Negotiation
Packaging Details: 10RL/bag
Delivery Time: 3/7 Work days
Payment Terms: T/T
Supply Ability: 1000SQM/Day
Contact Now

High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader

Description
Prodcuts Name: High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader Backing Type: Aluminum Foil
Adhesive Type: Acrylic Adhesive Color: White
180°Peel Adhesion (gf/inch) Steel,Immediate: ≥1200 Thermal Conductivity: 1.6 W/mK
Recommanded Operating Temperature（℃）: -40~125 Thickness: 0.006"/0.15mm
Keywords: Thermal Adhesive Tape Application: Power Converter PCB Heat Spreader
Highlight:

adhesive foam tape

,

thermally conductive adhesive tape

,

1.6 W/mK Thermal Adhesive Tape

High Performance 1.6W/mK Aluminum Foil Double Sided Thermal Adhesive Tape For Power Converter PCB Heat Spreader


The TIA®800AL Series is widely used for bonding heat sinks to microprocessors and other power consuming semiconductors. These tapes have strong adhesive strength and good thermal conductivity, aiming to replace traditional mechanical fixation and thermal conductive silicone grease,simplify assembly processes,improve product reliability,and are an ideal choice for solving the heat dissipation challenges of modern compact electronic devices.

Features

>High bonding strength
>Good thermal conductivity efficiency
>Easy to apply and can be die-cut into custom sizes
>Stable operation over a wide temperature range

Applications

>LED module
>Power device
>Consumer electronics
>Communication equipment

Typical Properties of  TIA®806AL Series
Products Name TIA®806AL Test Method
Color White Visual
Adhesive Type Acrylic Adhesive -
Backing Type Aluminum Foil -
Recommanded Operating Temperature(℃) -40~125 -
Thickness (inch/mm) 0.006/ 0.15 ASTM D374
Breakdown Voltage(V) ≥ 1000 ASTM D149
Thermal Conductivity (W/mK) 1.6 ASTM D5470
180°Peel Adhesion (gf/inch) Steel, Immediate ≥ 1200 ASTM D149
180°Peel Adhesion (gf/inch) Steel, 24hrs ≥ 1400 JIS K02378
Holding Power (H/inch) @25℃ ≥ 48 JIS K023711
Holding Power (H/inch) @80℃ ≥ 48 JIS K023711

Product Specifications

Standard Thickness:0.006"(0.15 mm),0.008"(0.20 mm),0.010" (0.25 mm)
Standard Size: 16"×100" (406 mmx 30.48 m)
Reinforcing Carrier:TIAB80oAL Series rolls can be reinforced with aluminum foil

The TIA Series can be provided with die-cutting into various shapes.
For different thicknesses or more information about thermally conductive materials,please contact our company.
