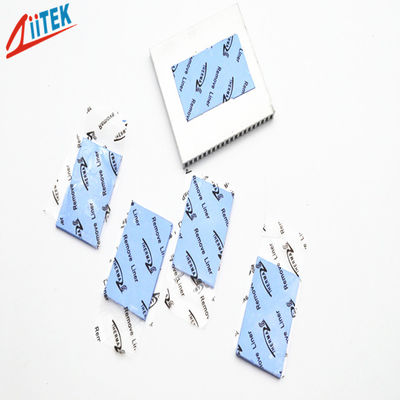

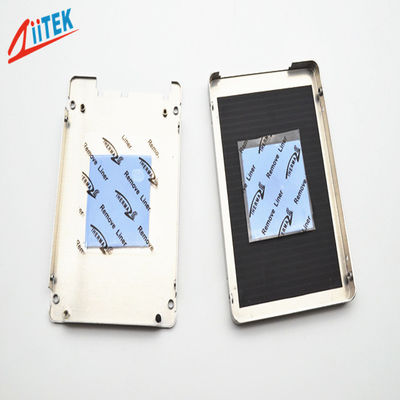

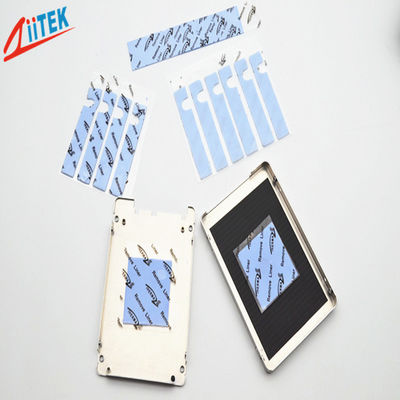

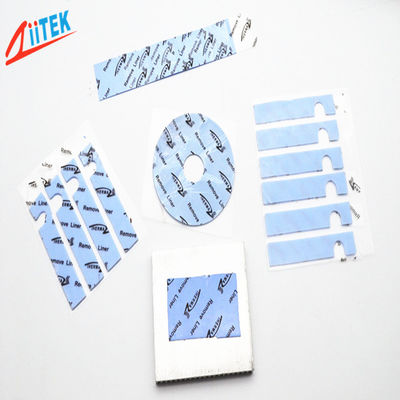

Blue soft Thermal Gap Filler 4.0 W/mK silicone gap pad -50 to 200℃ for LED street lamp

Blue soft Thermal Gap Filler 4.0 W/mK  silicone gap pad -50 to 200℃ for LED street lamp
Blue soft Thermal Gap Filler 4.0 W/mK  silicone gap pad -50 to 200℃ for LED street lamp Blue soft Thermal Gap Filler 4.0 W/mK  silicone gap pad -50 to 200℃ for LED street lamp Blue soft Thermal Gap Filler 4.0 W/mK  silicone gap pad -50 to 200℃ for LED street lamp Blue soft Thermal Gap Filler 4.0 W/mK  silicone gap pad -50 to 200℃ for LED street lamp

Large Image :  Blue soft Thermal Gap Filler 4.0 W/mK silicone gap pad -50 to 200℃ for LED street lamp

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-40-05U
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Volume Resistivity: 8X1012Ohm-meter Specific Gravity: 2.85 G/cc
Heat Capacity: 1 L /g-K Color: Blue
Continuos Use Temp: -50 To 200℃ Hardness: 27 Shore 00
High Light:

high temperature phase change materials

,

thermal conductivity silicone

Blue soft Thermal Gap Filler 4.0 W/mK silicone gap pad -50 to 200℃ for LED street lamp



Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



  The TIF100-40-05U thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.


Features:


>  Good thermal conductive: 4.0 W/mK

>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness


Applications:


>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)



Typical Properties of TIF™ 100-40-05U Series
Color

Blue

Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm 0.21
20mils / 0.508 mm 0.27
Specific Gravity
2.80 g /cc ASTM D297

30mils / 0.762 mm

0.39

40mils / 1.016 mm

0.43
Heat Capacity
1 l /g-K ASTM C351

50mils / 1.270 mm

0.50

60mils / 1.524 mm

0.58

Hardness
27 Shore 00 ASTM 2240

70mils / 1.778 mm

0.65

80mils / 2.032 mm

0.76
Tensile Strength

55 ps

ASTM D412

90mils / 2.286 mm

0.85

100mils / 2.540 mm

0.94
Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

1.00

120mils / 3.048 mm

1.07
Dielectric Breakdown Voltage
>10000 VAC ASTM D149

130mils / 3.302mm

1.16

140mils / 3.556 mm

1.25
Dielectric Constant
7.5 MHz ASTM D150

150mils / 3.810 mm

1.31

160mils / 4.064 mm

1.38
Volume Resistivity
8X1012Ohm-meter ASTM D257

170mils / 4.318 mm

1.43

180mils / 4.572 mm

1.50
Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

1.60

200mils / 5.080 mm

1.72
Thermal conductivity
4.0 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470



Standard Thicknesses:

0.010" (0.25mm)       0.020" (0.51mm)       0.030" (0.76mm)       0.040" (1.02mm)       0.050" (1.27mm)       0.060" (1.52mm)       0.070" (1.78mm)       0.080" (2.03mm)       0.090" (2.29mm)       0.100" (2.54mm)       0.110" (2.79mm)       0.120" (3.05mm)       0.130" (3.30mm)       0.140" (3.56mm)       0.150" (3.81mm)       0.160" (4.06mm)       0.170" (4.32mm)       0.180" (4.57mm)       0.190" (4.83mm)       0.200" (5.08mm)
Consult the factory alternate thickness.


Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
