black Two Component Epoxy Thermal Conductive Glue 1.2W/mK for LED Lighting,water proof,adhesive paste -40℃ to +130℃

black Two Component Epoxy Thermal Conductive Glue 1.2W/mK for LED Lighting,water proof,adhesive paste -40℃ to +130℃
black Two Component Epoxy Thermal Conductive Glue 1.2W/mK for LED Lighting,water proof,adhesive paste -40℃ to +130℃ black Two Component Epoxy Thermal Conductive Glue 1.2W/mK for LED Lighting,water proof,adhesive paste -40℃ to +130℃ black Two Component Epoxy Thermal Conductive Glue 1.2W/mK for LED Lighting,water proof,adhesive paste -40℃ to +130℃ black Two Component Epoxy Thermal Conductive Glue 1.2W/mK for LED Lighting,water proof,adhesive paste -40℃ to +130℃

Large Image :  black Two Component Epoxy Thermal Conductive Glue 1.2W/mK for LED Lighting,water proof,adhesive paste -40℃ to +130℃

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIE™ 280-12AB
Payment & Shipping Terms:
Minimum Order Quantity: 2kg/LOT
Packaging Details: 1kg/can
Delivery Time: 2-3 work day
Supply Ability: 1000KG
Contact Now
Detailed Product Description
Color: Black Viscosity@25℃ Brookfield: 35000 CPs
Specific Gravity: 1.6 G/cc Thermal Impedance @10psi: 0.36 ℃-in²/W
Dielectric Constant: 4.2 MHz Service Temperature: -40℃ To +130℃
Highlight:

heat conductive glue

,

diy conductive glue

,

Thermal Conductive Glue 1.2W/mK

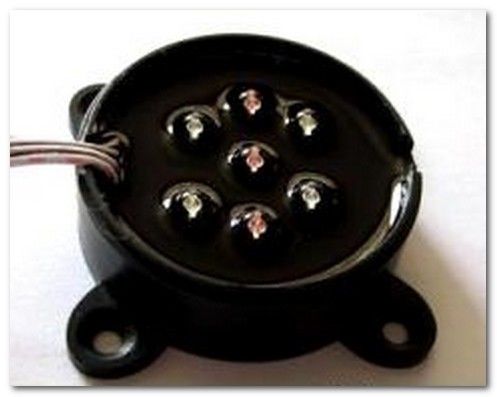

Two Component Epoxy Thermal Conductive Glue for Potting LED Lighting Heat Spreader





TIE™ 280-12AB is a two compound, high thermal conductive, low temperature cured, long pot life, fire resistant epoxy encapsulant compound. It is design for potting of capacitors and electrical devices.



 Features



> Good thermal conductive: 1.2W/mK

> Excellent insulation and smoothly sourface.

> Low shrinkage

> Low viscosity, expediting air releaseed.

> Excellent in solvents and water proof.

> Longer life time.

> Excellent thermal shock efficiecy and impact resistance



 Application



> Automotive starters potting; General potting Thermal detector potting

> Ferrite adhesion; TIP type LED; Good adhesion to aromatic polyester

> Relay sealant; Good adhesion to rubber, ceramics PCB and plastics

> Power transformers and coils; Potting capacitors Potting of small electrical devices

> Adhesion to metal glass and plastic LCD & substrates adhesion; Coating and sealant; Coil ; IGBTS; Transformer; Fire retardant

> Optical / medical component adhesive





Typical Uncured Material TIE™ 280-12A (Resin)
Color  Black
Viscosity@25℃ Brookfield  3,000 cPs
Specific Gravity  1.6 g/cc
Shelf life @25℃ in sealed container  12 months
TIE™ 280-12B (Hardener)
Color  Black
Viscosity@25℃ Brookfield  5,000 cPs
Shelf life @25℃ in sealed container  12 months n





Mix Ratio (By weight)                                                                                                         TIE™ 280-12A : TIE™ 280-12B = 100 : 100
Viscosity @25℃ 4,000 cPs
Working pot life (250 g @25℃)  45 min
Specific Gravity  1.6 g/ccn
Cure Schedule
Cure 12 hours at 25℃
Cure 30 minutes at 70℃





Cured Properties
Hardness @25℃ 85 Shore D
Service temperature -40℃ to +130℃
Glass transition temperature Tg   92℃
Elongation 0.10%
Coefficient of thermal expansion, / ℃ 3.0 X 10-5
Fire resistance UL Meet 94 V-0
Moisture absorption % wt gain 24 hours water immersion @25℃ 0.1





Thermal
Thermal Impedance @10psi 0.36 ℃-in²/W
ELECTRICAL AS CURED
Dielectric Strength 300 volts / mil
Dielectric Constant 4.2 MHz
Dissipation factor 0.029 MHz
Volume resistivity, ohm-cm @ 25℃ 3.0 X 1012




black Two Component Epoxy Thermal Conductive Glue 1.2W/mK for LED Lighting,water proof,adhesive paste -40℃ to +130℃ 0
