Thermal conductive high electric insulation silicone pink sheets TIS118-02 for LED lighting

China Thermal conductive high electric insulation silicone pink sheets TIS118-02 for LED lighting supplier
Thermal conductive high electric insulation silicone pink sheets TIS118-02 for LED lighting supplier Thermal conductive high electric insulation silicone pink sheets TIS118-02 for LED lighting supplier Thermal conductive high electric insulation silicone pink sheets TIS118-02 for LED lighting supplier

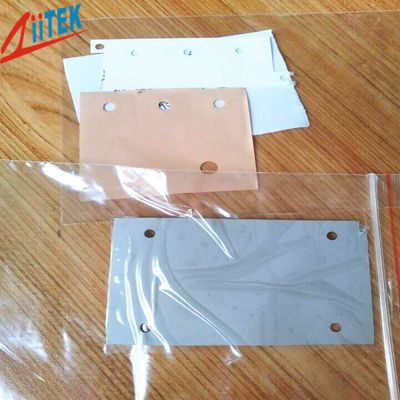

Large Image :  Thermal conductive high electric insulation silicone pink sheets TIS118-02 for LED lighting

Product Details:

Place of Origin: China
Brand Name: Ziitek
Certification: RoHs and UL
Model Number: TIS118-02

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3Word days
Supply Ability: 100000PCS/Day
Contact Now
Detailed Product Description
Product Name: TIS118-02 Hardness: 50 Shore A
Volume Resistivity: 3.5X10" Ohm-meter Thickness: 0.45mmT
Color: Pink Dielectric Constant: 5.5 MHz

Thermal conductive high electric insulation silicone pink sheets TIS118-02 for LED lighting



The TIS™118-02  products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.


Features


>  Highly compliant surface characteristic with high thermal conductivity
>  High thermal conductive and High dielectric strength
>  Low thermal resistance with high voltage isolation
>  Resistant to tears and punctures


Applications


>  Power conversion equipment
>  Power semiconductors:To packages, MOSFETs & IGBTs
>  Audio and Video components
>  Automotive control units
>  Closed cell
>  General high pressure interface



                                           Typical Properties of TIS™118-02
Product Name TISTM100-01 TISTM100-02 TISTM100-03 TISTM100-05 Test Method
Color Grey Pink Yellow Blue Visual
Construction &
Compostion
Ceramic filled silicone rubber Ceramic filled silicone rubber Ceramic filled silicone rubber Ceramic filled silicone rubber ***
Composite Thickness 9/0.23 12/0.3 18/0.45 9/0.23 12/0.3 18/0.45 9/0.23 12/0.3 18/0.45 9/0.23 12/0.3 18/0.45 ASTM2240
Specific Gravity 1.75 1.75 1.75 1.75 ASTM D297
Heat Capacity 1.0 1.0 1.0 1.0 ASTM C351
Hardness 50 50 50 50 ASTM D751
Tensile Strength 425 425 425 425 ASTM D412
Continuos Use Temp (-58 to 356℉) / (-50 to 180℃) ***
Electrical
Dielectric Breakdown Voltage >3500 >3500 >3500 >3500 ASTM D149
Dielectric Constant 5.5 5.5 5.5 5.5 ASTM D150
Volume Resistivity 3.5X10" 3.5X10" 3.5X10" 3.5X10" ASTM D257
Fire rating 94 V0 94 V0 94 V0 94 V0 Equivalent UL
Thermal
Thermal conductivity 1.0 1.0 1.0 1.0 ASTM D5470
Thermal Impedance @50psi 1.52 2.35 3.45 1.52 2.35 3.45 1.52 2.35 3.45 1.52 2.35 3.45 ASTM D5470


Standard Thicknesses:


0.005"(0.127mm)      0.006"(0.152mm)      0.008"(0.203mm)      0.009"(0.228mm)
0.010"(0.254mm)      0.012"(0.304mm)      0.018"(0.457mm)
Consult the factory alternate thickness.


Standard Sizes:


16" x 18"(406mm x 457mm)      16" x 200'(406mm x 60.9M)
Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive:


Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.
Reinforcement:
TIS™ series sheets are fiberglass reinforced.


Thermal conductive high electric insulation silicone pink sheets TIS118-02 for LED lighting
