High voltage application and insulation thermal silicone insulation pad materials TIS810K 0.254mmT

China High voltage application and insulation thermal silicone insulation pad materials TIS810K 0.254mmT supplier
High voltage application and insulation thermal silicone insulation pad materials TIS810K 0.254mmT supplier High voltage application and insulation thermal silicone insulation pad materials TIS810K 0.254mmT supplier High voltage application and insulation thermal silicone insulation pad materials TIS810K 0.254mmT supplier High voltage application and insulation thermal silicone insulation pad materials TIS810K 0.254mmT supplier

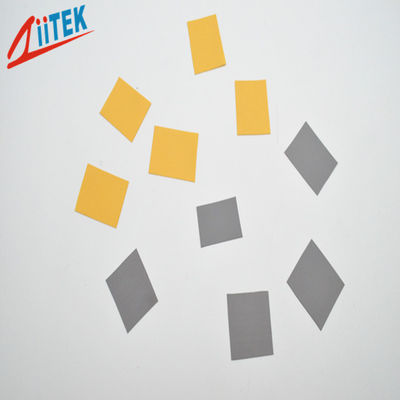

Large Image :  High voltage application and insulation thermal silicone insulation pad materials TIS810K 0.254mmT

Product Details:

Place of Origin: Dongguan
Brand Name: ziitek
Certification: RoHs and UL
Model Number: TIS810K

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Packaging Details: 100pcs/bag
Delivery Time: 4 days
Payment Terms: Western Union, MoneyGram
Supply Ability: 10000/days
Contact Now
Detailed Product Description
Flame Rating: UL94-V0 Dielectric Breakdown Voltage: 6000VAC
Total Thickness: 0.254mmT Tensile Strength: >17.8 Kpsi
Product Name: TIS 810K Heat Capacity: 1 L/g-K
Application: LED PCB CPU GPU

High voltage application and insulation thermal silicone insulation pad materials TIS810K 0.254mmT​

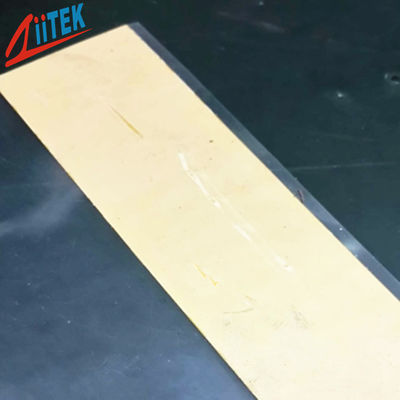

The TIS™810K products is a high thermal conduction and dielectric performance insulator pad
consisting of a ceramic filled low melting point compound coated on MT Kapton film.
At 50℃, TIS™800K Series begins to soften and flow, filling the microscopic irregularities of both the
thermal solution and the integrated circuit package surface, thereby reducing thermal resistance


Feature
>Highly compliant surface characteristic
with high thermal conductivity
>High thermal conductive and High dielectric strength
>Low thermal resistance with high voltage isolation
>Resistant to tears and punctures


Application

Power conversion equipment

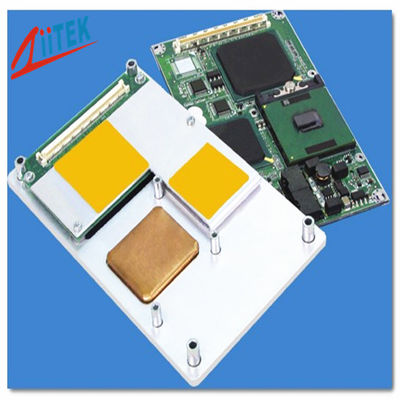

Power semiconductors:To cpu, MOSFETs & IGBTs
Audio and Video components
Automotive control units
Motor controllers
General high pressure interface
Power supplies and UPS
Motor and engine controllers
Televisions and consumer electronics
LED Power Supply
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power Supply
Waterproof LED Power Supply
Piranha wroof and common LED module
LED module for Channelletters





Typical Properties of TIS™810K series
Product Name TIS™806K TIS™808K TIS™810K Test Method
Color Light Amber Visual
Composite Thickness 0.005"/0.127mm 0.007"/0.178mm 0.008"/0.203mm ASTM D374
MT Kapton
® Thickness
0.001"/0.0254mm 0.001"/0.254mm 0.002"/0.508mm ASTM D374
Total Thickness 0.006"/0.152mm 0.008"/0.203mm 0.01"/0.254mm ASTM D374
Specific Gravity 2.0 g/cc ASTM D297
Heat Capacity 1 l/g-K ASTM C351
Tensile Strength >13.5 Kpsi >13.5 Kpsi >17.8 Kpsi ASTM D412
Continuous Use Temp (-58 to 266℉) / (-50 to 130℃) ***
Electrical
Dielectric Breakdown Voltage >4000 VAC >5000 VAC >6000 VAC ASTM D149
Dielectric Constant 1.8 MHz ASTM D150
Volume Resistivity 3.5X1014
Ohm-meter
ASTM D257
Flame Rating 94 V0 equivalent UL
Thermal
Thermal conductivity 1.3 W/mK
Thermal Impedance@50psi 0.12℃-in²/W 0.16℃-in²/W 0.21℃-in²/W ASTM D5470


Standard Thicknesses:
0.004"(0102mm) 0.005"(0.127mm) 0.006"(0.152mm)
Consult the factory alternate thickness.


Standard Sizes:
10" x 100"(254mm x 30.48M)

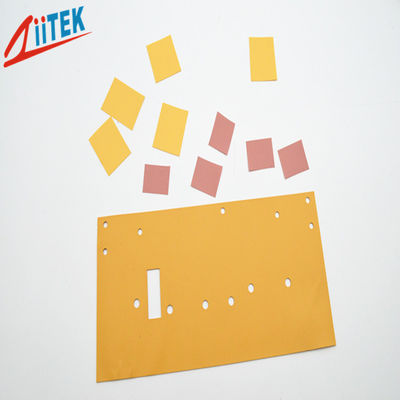

Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive:
Peressure Sensitive Adhesive is not applicable for TIS™800K series products.


Reinforcement:
TIS800K series sheets are Kapton® reinforced.
