Routers Applied Raw Thermally Conductive Engineer Plastics 1.45g/cm3 Light Weight TCP100-07-02A 0.7W/mK 0.1% shrinkage

China Routers Applied Raw Thermally Conductive Engineer Plastics 1.45g/cm3 Light Weight TCP100-07-02A 0.7W/mK  0.1% shrinkage supplier
Routers Applied Raw Thermally Conductive Engineer Plastics 1.45g/cm3 Light Weight TCP100-07-02A 0.7W/mK  0.1% shrinkage supplier Routers Applied Raw Thermally Conductive Engineer Plastics 1.45g/cm3 Light Weight TCP100-07-02A 0.7W/mK  0.1% shrinkage supplier Routers Applied Raw Thermally Conductive Engineer Plastics 1.45g/cm3 Light Weight TCP100-07-02A 0.7W/mK  0.1% shrinkage supplier

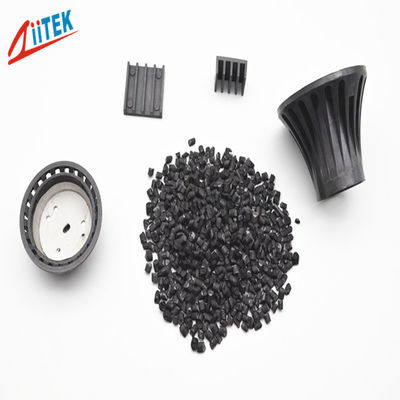

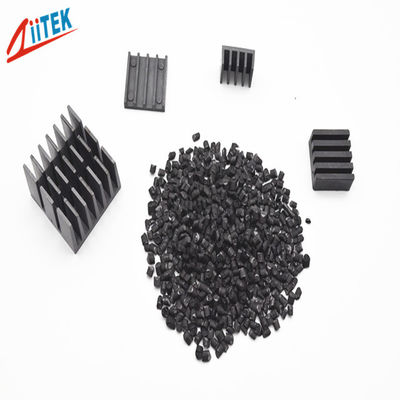

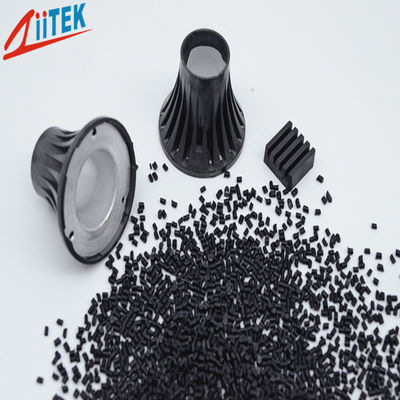

Large Image :  Routers Applied Raw Thermally Conductive Engineer Plastics 1.45g/cm3 Light Weight TCP100-07-02A 0.7W/mK 0.1% shrinkage

Product Details:

Place of Origin: China
Brand Name: Ziitek
Certification: RoHs and UL
Model Number: TCP100-07-02A

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Packaging Details: 25KG/Bag
Supply Ability: 1000KG/day
Contact Now
Detailed Product Description
Shrinkage: 0.1% Thermal Conductivity In Plane: 0.7W/mK
Thermal Conductivity Throngh Plane: 15W/mK Heat Deflection Temperature: 150℃
Specific Gravity: 1.45g/cm3 Color: Black

Routers Applied Raw Thermally Conductive Engineer Plastics 1.45g/cm3 Light Weight TCP100-07-02A 0.7W/mK 0.1% shrinkage


TCP™100-07-02A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

Application

TCP™100-07-02Acan be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.

To potting LED Lighting heat spreader and power- driver.
Ferrite cements
Relay sealant
Power transformers and coils
tip type LED
PCB and plastics
small electrical devices
IGBTs
Transformer
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power Supply
Waterproof LED Power Supply
Piranha wroof and common lED module
LED module for Channelletters
SMD LED module
LED Flesible strip, LED bar
LED PanelLight
LED floot light


Features

>  Good thermal conductivity:0.7W/mK
>  Excellent thermal conductivity compared to normal engineering plastics
>  Lighter than normal Aluminum housing 30% in weight
>  Excellent mould ability in injection moulding
>  Much higher production yield than normal Aluminum Die Casting
>  Excellent flexibility in designing final products such as housings.
>  UL94 V-0.
>  Fujipoly / Laird / Berquist Alternative

Routers Applied Raw Thermally Conductive Engineer Plastics 1.45g/cm3 Light Weight TCP100-07-02A 0.7W/mK  0.1% shrinkage


Typical Properties of TCP™100-07-02A
Items Test method Unit Typical data
Physical Properties
Color Visual ***** Black
Melt index ISO 1133 g/10min 4
Specific Gravity ISO 1183 g/cm3 1.45
Shrinkage ISO 294 % 0.1
Mechanical Properties
Tensile Strength ISO 527 MPa 55
Flexural Strength ISO 178 MPa 80
Flexural Modulus ISO 178 MPa 15800
Impact Strength, notched ISO 180 kJ/m2 2.5~3.5
Electrical Properties

Dielectric Constant, 1MHz ASTM D150 ***** 4.5
Volume Resistivity ASTM D257 Ohm-meter 10000
Thermal Properties
Heat Deflection Temperature ASTM D648 150
Thermal Conductivity In Plane ASTM E1461 W/m-K 15
Thermal Conductivity Throngh Plane ASTM E1461 W/m-K 0.7
Flame retardancy Min. thick. 1.0mm Class V-0





a. Pre-Drying : 4 hrs. @ 80 by Hopper Dryer

b. Recommendable Process Temperature at molding machine
    - Nozzie : 280
    - Front : 270
    - Middle : 260
    - Rear : 250
c. Cycle time : 30sec

Routers Applied Raw Thermally Conductive Engineer Plastics 1.45g/cm3 Light Weight TCP100-07-02A 0.7W/mK  0.1% shrinkage
