Color: | Blue | Thermal Conductivity: | 3.2 W/m-K |
---|---|---|---|
Hardness: | 35 Shore 00 | Specific Gravity: | 3.0 G/cc |
Continuos Use Temp: | -40 To 160℃ | Fire Outgassing(TML)rating: | 0.45% |
High Light: | thermal conductive material,cpu thermal pad,16" x 18" Thermal Conductive Pad |

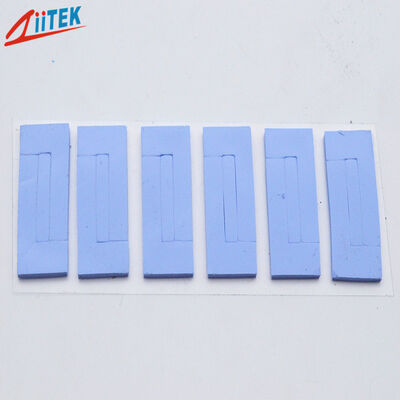

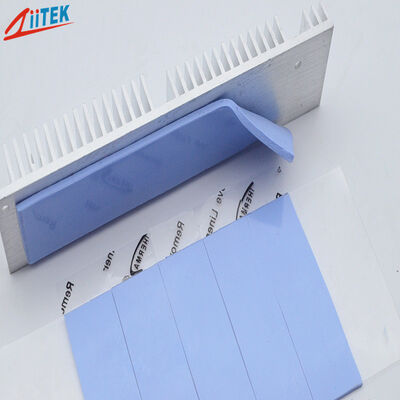

Soft Compressible blue Thermal Conductive Pad TIF100-32-05E For Handheld Portable Electronics, 3.2W/mK,35 Shore 00
The TIF100-32-05E thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
TIF100-32-05E Datasheet-REV02.pdf
Features:
> Good thermal conductive: 3.2 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
Typical Properties of TIF100-32-05E
|
||||
Color
|
BLUE |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm |
0.42 |
20mils / 0.508 mm |
0.49 |
|||
Specific Gravity
|
3.0 g/cc |
ASTM D297 |
30mils / 0.762 mm |
0.59 |
40mils / 1.016 mm |
0.66 |
|||
Heat Capacity
|
1 l/g-K |
ASTM C351 |
50mils / 1.270 mm |
0.77 |
60mils / 1.524 mm |
0.81 |
|||
Hardness
|
35 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.89 |
80mils / 2.032 mm |
0.97 |
|||
Tensile Strength |
35 psi |
ASTM D412 |
90mils / 2.286 mm |
1.06 |
100mils / 2.540 mm |
1.14 |
|||
Continuos Use Temp
|
-40 to 160℃ |
*** |
110mils / 2.794 mm |
1.22 |
120mils / 3.048 mm |
1.33 |
|||
Outgassing(TML)
|
0.45% | ASTM E595 |
130mils / 3.302mm |
1.40 |
140mils / 3.556 mm |
1.48 |
|||
Dielectric Constant
|
5.0 MHz | ASTM D150 |
150mils / 3.810 mm |
1.59 |
160mils / 4.064 mm |
1.67 |
|||
Volume Resistivity
|
1.0X1012 Ohm-meter |
ASTM D257 |
170mils / 4.318 mm |
1.76 |
180mils / 4.572 mm |
1.85 |
|||
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
1.90 |
200mils / 5.080 mm |
1.99 |
|||
Thermal conductivity
|
3.2 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
