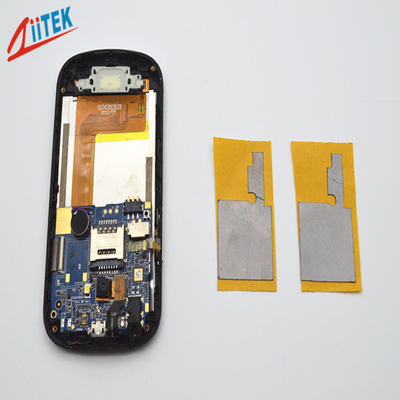

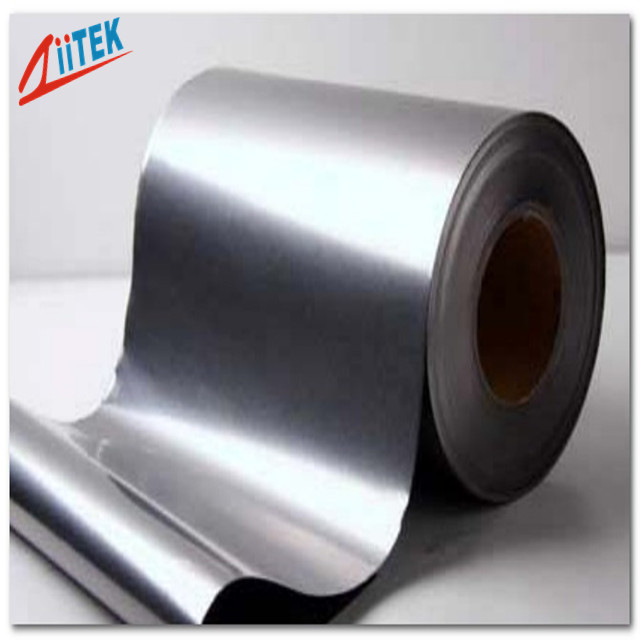

Non Toxic High Power LED Thermal Graphite Sheet with -200℃ - 300℃ Operating Temperature

Non Toxic High Power LED Thermal Graphite Sheet with -200℃ - 300℃ Operating Temperature
Non Toxic High Power LED Thermal Graphite Sheet with -200℃ - 300℃ Operating Temperature Non Toxic High Power LED Thermal Graphite Sheet with -200℃ - 300℃ Operating Temperature Non Toxic High Power LED Thermal Graphite Sheet with -200℃ - 300℃ Operating Temperature Non Toxic High Power LED Thermal Graphite Sheet with -200℃ - 300℃ Operating Temperature

Large Image :  Non Toxic High Power LED Thermal Graphite Sheet with -200℃ - 300℃ Operating Temperature

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIR606-16
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3 work days
Detailed Product Description
Composite Thickness: 0.05~0.2mmT Color: Black
Hardness: 2.2 G/cc L Conductivity (Z Axis Direction)Therma: 16.0W/m-K
Thermal Conductivity (X-Y Axis Direction): 120W/m-K Operating Temperature: -200℃ ~300℃
High Light:

thermal conductivity graphite

,

pyrolytic graphite sheet

,

Black thermal conductive graphite sheet

Non Toxic High Power LED Thermal Graphite Sheet with -200℃ - 300℃ Operating Temperature



The TIR™600-16 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.


Features


> High thermal conductive of 16.0 W/mK
> Low thermal resistance

> RoHS compliant

> UL recognized


Applications


> Power conversion equipment
> Power supplies
> Large telecommunications switching hardware
> Notebook computers




Typical Properties of TIR™600-16 Series

Product Name TIRTM605-16 TIRTM610-16 Test Method
Materials Natural graphite
Color Black Visual
Composite Thickness
(in/mm)
0.005"(0.127mm) 0.010" (0.254mm)
Thickness Tolerance +/- 10% +/- 5%
Density 2.2 g/cc
Hardness 85 Shore A ASTM D2240
Thermal conductivity
(Z Axis Direction)

16.0W/m-K

ASTM D5470
Thermal conductivity
(X-Y Axis Direction)

120W/m-K

ASTM D5470
Tensile Strength 215psi (1400kpa) 270psi (1800kpa) ASTM D5470
Thermal Impedance
( @100psi)
0.029 in²℃/W 0.039 in²℃/W ASTM D5470
Operating Temperature -200℃ ~300℃


Standard Thicknesses


0.004"(0.102mm)    0.005"(0.127mm)    0.006"(0.152mm)
0.008"(0.203mm)    0.010"(0.254mm)    0.012"(0.304mm)
0.020"(0.508mm)
Consult the factory alternate thickness.


Standard Sizes


18" x 18"(457mm x 457mm)  18" x 300'(457mm x 91.4M)
Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive


Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.


Insulation


Request plastic on one side with "P1" suffix



Non Toxic High Power LED Thermal Graphite Sheet with -200℃ - 300℃ Operating Temperature 0



TIR600 Series Datasheet-(E).pdf
