| Certification: | UL | Name: | Wholesale Customized High Thermal Conductivity Adhesive Silicone Thermal Pads |
|---|---|---|---|
| Applications: | GPU CPU Cooling | Keyword: | Silicone Thermal Pad Distributor |
| Material: | Silicone | Thermal Conductivity: | 7.0 W/m-K |
| Thickness: | 5.0mmT |

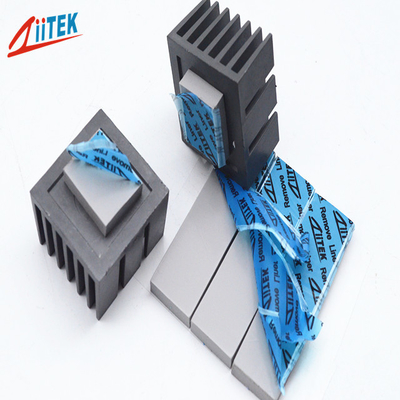

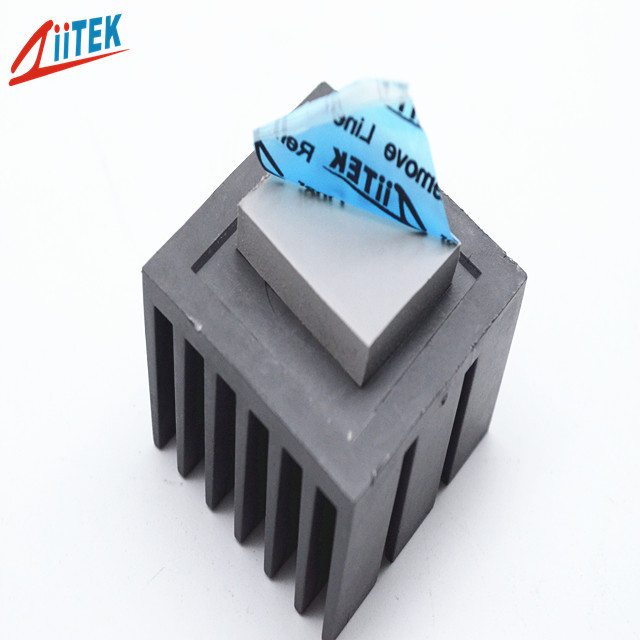

Wholesale Silicone Thermal Pad Distributor for LED Lamp CPU GPU Cooling
Ziitek TIF7200HZ use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features
> Good thermal conductive: 7.0 W/mK
> Thickness: 5.0mmT
> hardness:55±5
> Colour: Blue
> Easy release construction
> Electrically isolating
> High durability
Applications
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
|
Typical Properties of TIF720HZ Series
|
||||
|
Color
|
Blue |
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone elastomer
|
***
|
10mils / 0.254 mm
|
0.16
|
|
20mils / 0.508 mm
|
0.20
|
|||
|
Specific gravity |
3.45 g/cc |
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
|
40mils / 1.016 mm
|
0.36
|
|||
| Thickness |
5.0mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
|
60mils / 1.524 mm
|
0.48
|
|||
|
Hardness
|
55±5 |
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
|
80mils / 2.032 mm
|
0.63
|
|||
| Thermal conductivity |
7.0W/mk
|
ASTMD5470
|
90mils / 2.286 mm
|
0.73
|
|
100mils / 2.540 mm
|
0.81
|
|||
|
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
|
120mils / 3.048 mm
|
0.93
|
|||
|
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
|
140mils /3.556 mm
|
1.08
|
|||
|
Dielectric Constant
|
4.5MHz |
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
|
160mils / 4.064 mm
|
1.20
|
|||
|
Volume Resistivity
|
≥ 1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
|
180mils / 4.572 mm
|
1.32
|
|||
|
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
|
200mils / 5.080 mm
|
1.52
|
|||
|
Thermal conductivity
|
7.0 W/m-K |
GB-T32064
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
