Heat Capacity: | 1 L/g-K | Thermal Conductivity: | 5.0 W/m-K |
---|---|---|---|
Hardness: | 20 Shore 00 | Density: | 2.9 G/cc |
Continuos Use Temp: | -40 To 160℃ | Flame Rating: | 94 V0 |
High Light: | silicone thermal gap pad,semiconductor thermal gap pad,silicone gap pad |

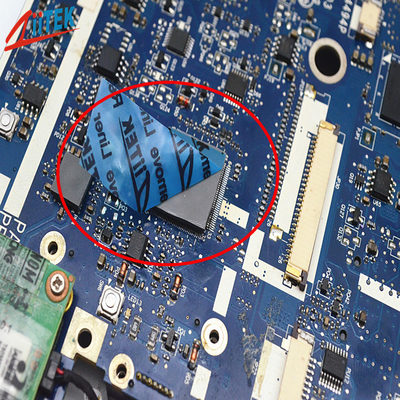

UL recognized High durability 5.0 W/mK silicone pads for Semiconductor automated test equipment,1.0mmT

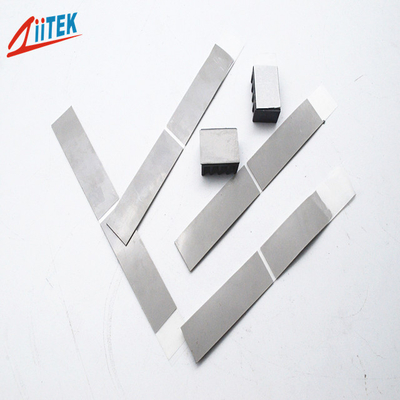

The TIF140-50-11US thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
TIF100-50-11US-Datasheet-REV02.pdf
Features
> Good thermal conductive: 5.0 W/mK
>Thickness:1.0mmT
>hardness:20 shore00
>Colour: Gray
>Naturally tacky needing no further adhesive coating
>Available in varies thicknesses
>Broad range of hardnesses available
Applications
>Automotive electronics
>Set top boxes
>Audio and video components
>IT infrastructure
>GPS navigation and other portable devices
>CD-Rom, DVD-Rom cooling
Typical Properties of TIF140-50-11US Series
|
||||
Color
|
gray
|
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone elastomer
|
***
|
10mils / 0.254 mm
|
0.16
|
20mils / 0.508 mm
|
0.20
|
|||
Specific gravity |
2.9g/cc
|
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
40mils / 1.016 mm
|
0.36
|
|||
Thickness |
1.0mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
60mils / 1.524 mm
|
0.48
|
|||
Hardness
|
20 Shore 00
|
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
80mils / 2.032 mm
|
0.63
|
|||
Outgassing(TML)
|
0.4%
|
ASTM E595
|
90mils / 2.286 mm
|
0.73
|
100mils / 2.540 mm
|
0.81
|
|||
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
120mils / 3.048 mm
|
0.93
|
|||
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
140mils /3.556 mm
|
1.08
|
|||
Dielectric Constant
|
4.2 MHz
|
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
160mils / 4.064 mm
|
1.20
|
|||
Volume Resistivity
|
1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
180mils / 4.572 mm
|
1.32
|
|||
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
200mils / 5.080 mm
|
1.52
|
|||
Thermal conductivity
|
5.0 W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
