Heat Capacity: | 1 L/g-K | Thermal Conductivity: | 3.0 W/m-K |
---|---|---|---|
Hardness: | 18 Shore 00 | Density: | 3.0 G/cc |
Continuos Use Temp: | -40 To 160℃ | Flame Rating: | 94 V0 |
High Light: | insulation thermal gap pad,3 w mk thermal gap pad,insulation gap pad |

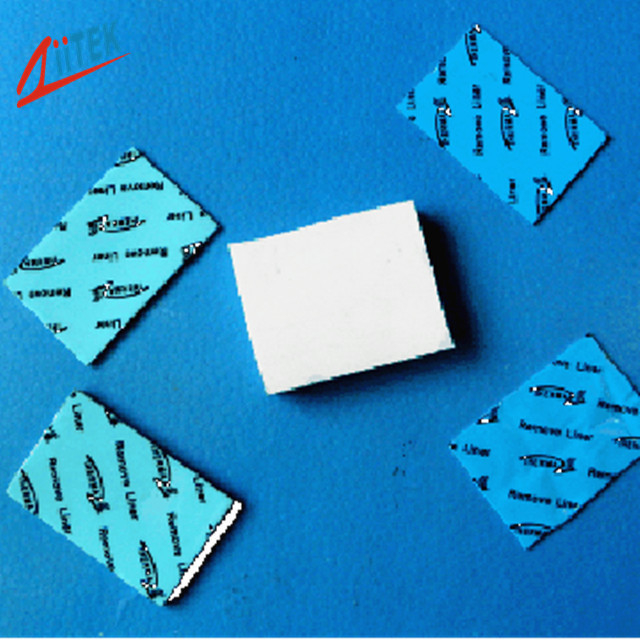

professional factory Broad range of hardnesses available thermal gap filler for Handheld portable electronics,3.0 W/mK
The TIF1200-30-06US is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
> Good thermal conductive: 3.0 W/mK
>Thickness:5.0mmT
>hardness:18 shore00
>Colour: white
>Easy release construction
>Electrically isolating
>High durability

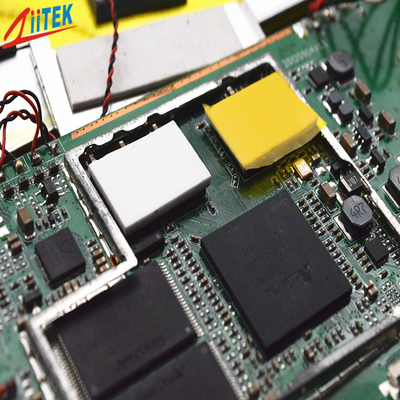

Applications
>Automotive engine control units
>Telecommunication hardware
>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>CPU
>display card
Typical Properties of TIF1200-30-06US Series
|
||||
Color
|
white
|
Visual
|
Composite Thickness
|
Thermal Impedance@10psi
(℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone rubber
|
***
|
10mils / 0.254 mm
|
0.16
|
20mils / 0.508 mm
|
0.20
|
|||
Specific gravity |
3.0g/cc
|
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
40mils / 1.016 mm
|
0.36
|
|||
Thickness |
5.0mmT
|
***
|
50mils / 1.270 mm
|
0.42
|
60mils / 1.524 mm
|
0.48
|
|||
Hardness
|
18 Shore 00
|
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
80mils / 2.032 mm
|
0.63
|
|||
Outgassing(TML)
|
0.35%
|
ASTM E595
|
90mils / 2.286 mm
|
0.73
|
100mils / 2.540 mm
|
0.81
|
|||
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
120mils / 3.048 mm
|
0.93
|
|||
Dielectric Breakdown Voltage
|
>5500 VAC
|
ASTM D149
|
130mils / 3.302mm
|
1.00
|
140mils /3.556 mm
|
1.08
|
|||
Dielectric Constant
|
4.0 MHz
|
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
160mils / 4.064 mm
|
1.20
|
|||
Volume Resistivity
|
1.0X1012
Ohm-cm |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
180mils / 4.572 mm
|
1.32
|
|||
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
200mils / 5.080 mm
|
1.52
|
|||
Thermal conductivity
|
3.0 W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.
Our vast experience allows us to assist our customers best in thermal engineering field.
We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
