Product Details:
Payment & Shipping Terms:
|
| Hardness: | 12±5 Shore 00 | Density: | 2.0 G/cm3 |
|---|---|---|---|
| Dielectric Breakdown Voltage: | >5500 VAC | Fire Rating: | 94-V0 |
| Construction & Compostion: | Ceramic Filled Silicone Rubber | Tensile Strength: | 40 Psi |
| High Light: | UL Recognized Silicone Thermal Pad,UL Recognized Thermal Pad Silicone,4.0mm thermal conductive silicone pad |
||

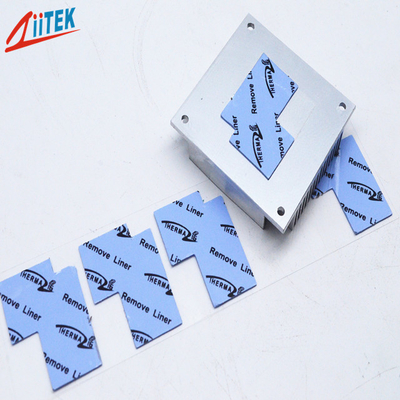

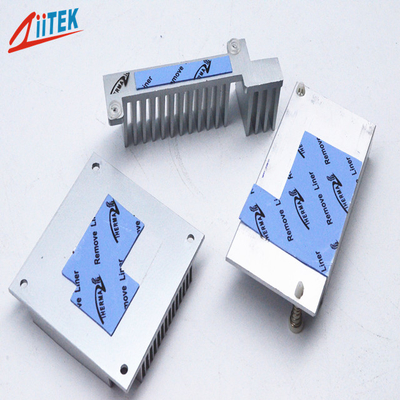

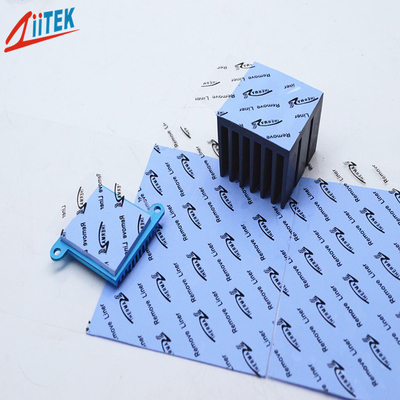

1.2w/MK UL recognized silicone thermal pad, for Automotive engine control units
The TIF1160-12-05ES use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
TIF100-12-05ES-Series-Datasheet.pdf
Features:
> Good thermal conductive: 1.2 W/mK
>Thickness:4.0mmT
>hardnesses :12±5 (Shore 00)
>Moldability for complex parts
>Soft and compressible for low stress applications
>UL recognized
Applications:
>Automotive engine control units
>Telecommunication hardware
>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>Audio and video components
>IT infrastructure
>GPS navigation and other portable devices
>CD-Rom, DVD-Rom cooling
Typical Properties of TIF1160-12-05ES Series | ||||
Color | blue | Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
Construction & Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.55 |
| 20mils / 0.508 mm | 0.82 | |||
desity | 2.0 g/cm3 | ASTM D297 | 30mils / 0.762 mm | 1.01 |
40mils / 1.016 mm | 1.11 | |||
| Thickness | 4.0mmT | *** | 50mils / 1.270 mm | 1.27 |
60mils / 1.524 mm | 1.45 | |||
Hardness | 12±5 (Shore 00) | ASTM 2240 | 70mils / 1.778 mm | 1.61 |
80mils / 2.032 mm | 1.77 | |||
| Tensile Strength | 40 psi | ASTM D412 | 90mils / 2.286 mm | 1.91 |
100mils / 2.540 mm | 2.05 | |||
Continuos Use Temp | -40 to 160℃ | *** | 110mils / 2.794 mm | 2.16 |
120mils / 3.048 mm | 2.29 | |||
Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 | 130mils / 3.302mm | 2.44 |
140mils / 3.556 mm | 2.56 | |||
Dielectric Constant | 4.5MHz | ASTM D150 | 150mils / 3.810 mm | 2.67 |
160mils / 4.064 mm | 2.77 | |||
Volume Resistivity | 1.0X1012 Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 2.89 |
180mils / 4.572 mm | 2.98 | |||
Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 3.05 |
200mils / 5.080 mm | 3.14 | |||
Thermal conductivity | 1.2 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
