Product Details:
Payment & Shipping Terms:
|
| Hardness: | 20 Shore 00 | Specific Gravity: | 2.9 G/cc |
|---|---|---|---|
| Dielectric Breakdown Voltage: | >5000 VAC | Fire Rating: | 94-V0 |
| Construction & Compostion: | Ceramic Filled Silicone Rubber | Tensile Strength: | 40 Psi |
| High Light: | rubber thermally conductive pad,UL recognized thermally conductive pad,3.0 W/MK thermally conductive pad |
||

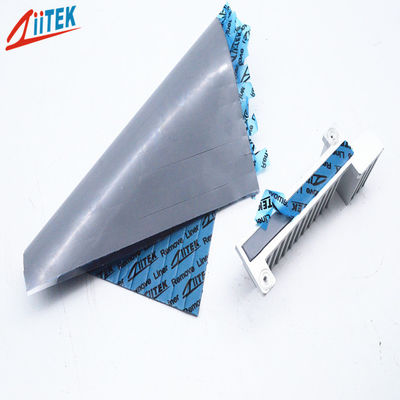

UL recognized thermally conductive silicone rubber For power supply,outstanding thermal performance :3.0 W/MK
The TIF5160-30-11US Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. TIF5160-30-11US Series is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
TIF500-30-11US Datasheet-REV02.pdf
Features:
> Good thermal conductive: 3.0 W/mK
>Thickness:4.0mmT
>Easy release construction
>Electrically isolating
>High durability
Applications:
>power supply
>Heat pipe thermal solutions
>Memory Modules
>SMD LED module
>LED Flesible strip, LED bar
>Telecommunication hardware
>Handheld portable electronics
|
Typical Properties of TIF5160-30-11US Series
|
||||
|
Color
|
Gray |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm |
0.55 |
| 20mils / 0.508 mm |
0.82 |
|||
|
Specific Gravity
|
2.9 g/cc |
ASTM D297 |
30mils / 0.762 mm |
1.01 |
|
40mils / 1.016 mm |
1.11 |
|||
| Thickness |
4.0mmT |
*** |
50mils / 1.270 mm |
1.27 |
|
60mils / 1.524 mm |
1.45 |
|||
|
Hardness
|
20 (Shore 00) | ASTM 2240 |
70mils / 1.778 mm |
1.61 |
|
80mils / 2.032 mm |
1.77 |
|||
| Tensile Strength |
40 psi |
ASTM D412 |
90mils / 2.286 mm |
1.91 |
|
100mils / 2.540 mm |
2.05 |
|||
|
Continuos Use Temp
|
-40 to 160℃ |
*** |
110mils / 2.794 mm |
2.16 |
|
120mils / 3.048 mm |
2.29 |
|||
|
Dielectric Breakdown Voltage
|
>5500 VAC | ASTM D149 |
130mils / 3.302mm |
2.44 |
|
140mils / 3.556 mm |
2.56 |
|||
|
Dielectric Constant
|
4.0 MHz | ASTM D150 |
150mils / 3.810 mm |
2.67 |
|
160mils / 4.064 mm |
2.77 |
|||
|
Volume Resistivity
|
1.0X1012 Ohm-meter |
ASTM D257 |
170mils / 4.318 mm |
2.89 |
|
180mils / 4.572 mm |
2.98 |
|||
|
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
3.05 |
|
200mils / 5.080 mm |
3.14 |
|||
|
Thermal conductivity
|
3.0W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
Advantage
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
FAQ
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
