Insulation Thermally Conductive Pad With High Thermal Conductivity And Various Thickness

China Insulation Thermally Conductive Pad With High Thermal Conductivity And Various Thickness supplier
Insulation Thermally Conductive Pad With High Thermal Conductivity And Various Thickness supplier Insulation Thermally Conductive Pad With High Thermal Conductivity And Various Thickness supplier

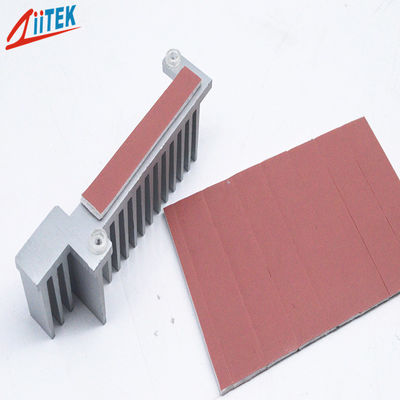

Large Image :  Insulation Thermally Conductive Pad With High Thermal Conductivity And Various Thickness

Product Details:

Place of Origin: China
Brand Name: ZIITEK
Certification: UL
Model Number: TIF280-20-18S

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Contact Now
Detailed Product Description
Thickness: 2mmT Typical Properties: TIF280-20-18S
KEYWORDS: Various Thickness Thermal Conductive Pad Application: Electronics
Materials: Silicone Thermal Pad



Insulation thermal conductive pad with high thermal conductivity and various thickness



The TIF280-20-18S thermally conductive materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base in the car. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.




Features:



>  Have a layer of insulation fabric
>  various hardness thermal conductive pad
>  Fiberglass reinforced
>  Available in varies thickness


Applications:



>  Car Batteries
>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)


Typical Properties of TIF280-20-18S Series
Color

Yellow

Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm 0.36
20mils / 0.508 mm 0.41
Specific Gravity
2.75 g/cc ASTM D297

30mils / 0.762 mm

0.47

40mils / 1.016 mm

0.52
Heat Capacity
1 l /g-K ASTM C351

50mils / 1.270 mm

0.58

60mils / 1.524 mm

0.65

Hardness
45 Shore 00 ASTM 2240

70mils / 1.778 mm

0.72

80mils / 2.032 mm

0.79
Tensile Strength

45 psi

ASTM D412

90mils / 2.286 mm

0.87

100mils / 2.540 mm

0.94
Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

1.01

120mils / 3.048 mm

1.09
Dielectric Breakdown Voltage
>10000 VAC ASTM D149

130mils / 3.302mm

1.17

140mils / 3.556 mm

1.24
Dielectric Constant
5.5 MHz ASTM D150

150mils / 3.810 mm

1.34

160mils / 4.064 mm

1.42
Volume Resistivity
7.2X10" Ohm-meter ASTM D257

170mils / 4.318 mm

1.50

180mils / 4.572 mm

1.60
Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

1.68

200mils / 5.080 mm

1.77
Thermal conductivity
 2 W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470


Standard Thicknesses:
 0.080" (2.04mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.
