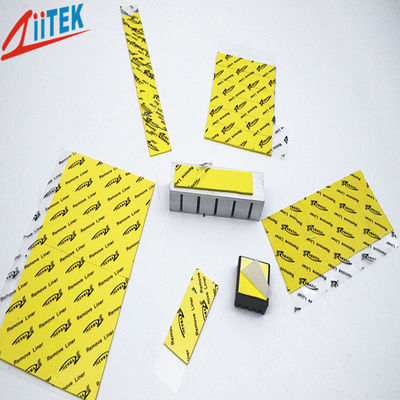

High Performance Thermal Conductive Gap Filler Pad TIF460-A2 Two Side Adhesive

High performance 1.5mmT thermal conductive gap filler pad TIF460-A2 two side adhesive, need no buckle

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

The TIF™460-A2 use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink..It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -50℃~200℃ and meet the requirement of UL94V0.

Features:

>  Good thermal conductive: 2.0 W/mK
>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness

Applications:

>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)

Standard Thicknesses:


1.5mmT

Standard Sheets Sizes:


8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:


Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:


TIF™ series sheets type can add with fiberglass reinforced.
