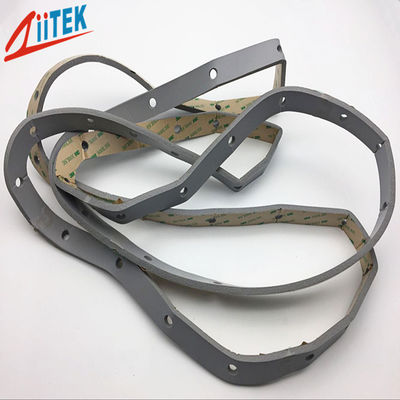

High Temperature 200℃ Silicone Foam Gasket Z-Foam8240 6mmT materials For Sealing Charging Pile

China High Temperature 200℃  Silicone Foam Gasket Z-Foam8240 6mmT materials For Sealing Charging Pile supplier
High Temperature 200℃  Silicone Foam Gasket Z-Foam8240 6mmT materials For Sealing Charging Pile supplier High Temperature 200℃  Silicone Foam Gasket Z-Foam8240 6mmT materials For Sealing Charging Pile supplier High Temperature 200℃  Silicone Foam Gasket Z-Foam8240 6mmT materials For Sealing Charging Pile supplier High Temperature 200℃  Silicone Foam Gasket Z-Foam8240 6mmT materials For Sealing Charging Pile supplier

Large Image :  High Temperature 200℃ Silicone Foam Gasket Z-Foam8240 6mmT materials For Sealing Charging Pile

Product Details:

Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: Z-FOAM8240 series

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 100PCS/bag
Delivery Time: 2-3 Work Day
Supply Ability: 1000PCS/Day
Contact Now
Detailed Product Description
Thickness: 6mmT Product Name: Z-FOAM8240
Application: Electronic Products Tear Strength: 50 (8.8) Ppi (kN/m)

High Temperature 200℃ Silicone Foam Gasket Z-Foam8240 6mmT materials For Sealing Charging Pile



Z-Foam8240 Series is the Ziitek research and development of silicone foam materials used for high temperature and high pressure.



We have different hardness and thickness specifications can be the user's flexible choice. At the same time, we can choose to join the fiberglass to increase the stability of the product size and improve the tear strength.



Features



Thickness: 6mmT

Provides enhanced sealing performance

Can withstand high temperature 200℃
Good cushioning and high compression
Resistance to ultraviolet light,ozone
Compressed after using a good recovery



Application



Electronic products

Car Battery
Traffic Equipment
Communication & Electrical Equipment
Charging Pile



High Temperature 200℃  Silicone Foam Gasket Z-Foam8240 6mmT materials For Sealing Charging Pile





Typical Properties of Z-Foam8160-10SC Series



Color

Gray

Visual

Compression permanent deformation

1.8%

ASTM D1056-07




Hardness

11.8 HA

  According  to   customer     requirements

Dielectric Constant

120Hz     0.054

ASTM D150




Tensile Strength

310  Kpa

ASTM D412-06a(2013)

Dielectric Strength

1.9KV/mm

ASTM D149




Tear Strength

1.74 (kN/m)

ASTM D624-2000(2012)

Operation Temperature

– 40 To 200

Ziitek Internal








Standard Thicknesses:

0.03-inch to 0.200-inch (0.75 to 5.0mm)

Standard Sizes:
23" x 60'(584mm x 1520mm) Individual die cut shapes can be supplied.

Options:
Special A1 ( single-sided prepare plastic ) option allows the product to strengthen sided sticky

High Temperature 200℃  Silicone Foam Gasket Z-Foam8240 6mmT materials For Sealing Charging Pile
