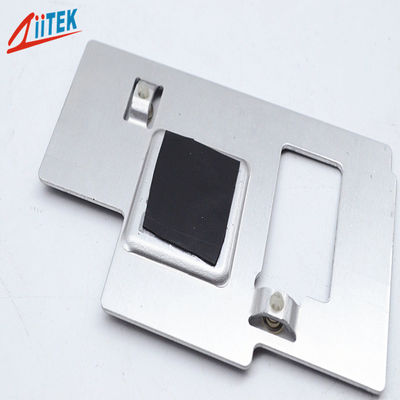

1.5 W/M-K Thermally Conductive Silicone Rubber In High Speed Mass Storage Drives

1.5 W/M-K Thermally Conductive Silicone Rubber In High Speed Mass Storage Drives
1.5 W/M-K Thermally Conductive Silicone Rubber In High Speed Mass Storage Drives
video play

Large Image :  1.5 W/M-K Thermally Conductive Silicone Rubber In High Speed Mass Storage Drives

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF1200-01ES
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5 work days
Supply Ability: 100000pcs/day
Detailed Product Description
Heat Capacity: 1 L/g-K Thermal Conductivity: 1.5 W/m-K
Hardness: 12±5 Shore 00 Density: 1.9 G/cm3
Continuos Use Temp: -40 To 160℃ Flame Rating: 94 V0
High Light:

1.5 W/m-K thermal conductive silicone pad

,

mass storage drives thermal pad silicone

,

High speed drives thermal pad silicone

1.5 W/m-K professional factory and popular thermally conductive silicone rubber in High speed mass storage drives



     The TIF1200-01ES thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.



TIF100-01ES-Series-Datasheet.pdf


Features

> Good thermal conductive: 1.5 W/mK

>Thickness:5.0mmT

>hardness:12±5 shore00

>Colour:drak gray

>Moldability for complex parts

>Outstanding thermal performance

>High tack surface reduces contact resistance


Applications

>High speed mass storage drives

>Heat Sinking Housing at LED-lit BLU in LCD

>LED TV and LED-lit lamps

>Set top boxes

>Audio and video components

>IT infrastructure

>GPS navigation and other portable devices





Typical Properties of TIF1200-01ES Series
Color
drak gray
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

1.9 g/cm3
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness
5.0mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
12±5 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Outgassing(TML)
0.30%
ASTM E595
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
>5500 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
2.9 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
1.0X1012
Ohm-meter
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
1.5 W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470



























































Company Profile



Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
