Product Details:
Payment & Shipping Terms:
|
Thickness: | 2mmT | Thermal Conductivity: | 1.5W/m-K |
---|---|---|---|
Product Name: | TIF180-02F | Fire Rating: | 94-V0 |
Color: | Gray White | Hardness: | 55 Shore 00 |
High Light: | Thermally Conductive Pad 2mmT,Telecommunication Hardware Thermally Conductive Pad,94 V0 silicon thermal pad |

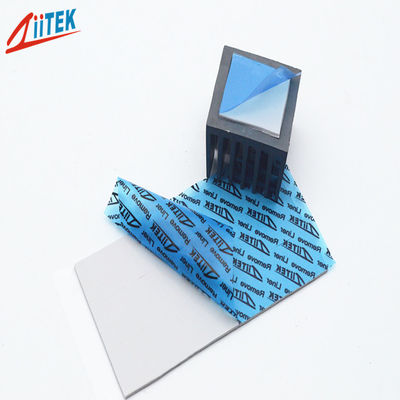

China company supplied Good thermal conductive Telecommunication Hardware Thermally Conductive Pad 2mmT 94 V0 for LED
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.
Our vast experience allows us to assist our customers best in thermal engineering field.
We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Ziitek TIF180-02F Series is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features:
High tack surface reduces contact resistance |
RoHS compliant 1.5 W/mK |
UL recognized |
Fiberglass reinforced for puncture, shear and tear resistance |
Easy release construction |
Electrically isolating |
High durability |
Applications
LED Ceilinglamp |
Monitoring the Power Box |
AD-DC Power Adapters |
Rainproof LED Power |
Waterproof LED Power |
SMD LED module |
LED Flesible strip, LED bar |
LED PanelLight |
LED floor light |
routers |
Typical Properties of TIF180-02F Series
|
||||
Color
|
gray white |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
Construction &
Compostion |
Ceramic filled silicone elastomer
|
*** | 10mils / 0.254 mm |
0.48 |
20mils / 0.508 mm |
0.56 |
|||
Specific Gravity
|
2.23 g/cc |
ASTM D297 |
30mils / 0.762 mm |
0.71 |
40mils / 1.016 mm |
0.80 |
|||
Heat Capacity
|
1 l/g-K |
ASTM C351 |
50mils / 1.270 mm |
0.91 |
60mils / 1.524 mm |
0.94 |
|||
Hardness
|
55 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
1.05 |
80mils / 2.032 mm |
1.15 |
|||
Tensile Strength
|
40 psi |
ASTM D412 |
90mils / 2.286 mm |
1.25 |
100mils / 2.540 mm |
1.34 |
|||
Continuos Use Temp
|
-40 to 160℃ |
*** |
110mils / 2.794 mm |
1.43 |
120mils / 3.048 mm |
1.52 |
|||
Dielectric Breakdown Voltage
|
>10000 VAC | ASTM D149 |
130mils / 3.302mm |
1.63 |
140mils / 3.556 mm |
1.71 |
|||
Dielectric Constant
|
5.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.81 |
160mils / 4.064 mm |
1.89 | |||
Volume Resistivity
|
4.0X10" Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.98 |
180mils / 4.572 mm |
2.07 |
|||
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
2.14 |
200mils / 5.080 mm |
2.22 |
|||
Thermal conductivity
|
1.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
