| Thermal Conductivity: | 1.5 W/m-K | Volume Resistivity: | 4.0X10" Ohm-meter |
|---|---|---|---|
| Dielectric Constant: | 5.5 MHz | Hardness, Shore 00: | 55 |
| Product Name: | TIF140FG-05S | Material: | Silicone Based With Fiberglass |
| High Light: | 1mm thick silicone thermal pad,thermal gap filler pad for Tablet,fiberglass reinforced thermal conductive pad |
||

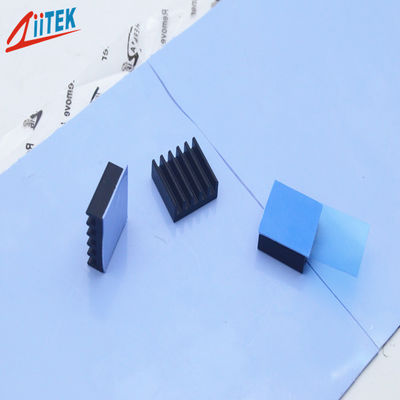

TIM manufacturer for Tablet PC thermal gap filler pad 1mmT with fiberglass reinforced TIF140FG-05F 55shore00
The TIF140FG-05F The product is a highly efficient thermal insulation material with thermal conductivity. The heat conduction interface material is used to fill the air gap between the heating element and the heat sink or metal substrate. Their flexibility and elasticity make them suitable for coatings on very uneven surfaces. Heat can be transferred from individual components or even the entire printed circuit board to a metal case or heat sink.
Ziitek Thermal Conductive Materials & Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
Features:
> Good thermal conductive: 1.5 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
|
Typical Properties of TIF140FG-05S Series
|
||||
|
Color
|
Blue |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm |
0.55 |
| 20mils / 0.508 mm |
0.82 |
|||
|
Specific Gravity
|
2.10 g/cc |
ASTM D297 |
30mils / 0.762 mm |
1.01 |
|
40mils / 1.016 mm |
1.11 |
|||
|
Heat Capacity
|
1 l/g-K |
ASTM C351 |
50mils / 1.270 mm |
1.27 |
|
60mils / 1.524 mm |
1.45 |
|||
|
Hardness
|
55(Shore 00) | ASTM 2240 |
70mils / 1.778 mm |
1.61 |
|
80mils / 2.032 mm |
1.77 |
|||
| Tensile Strength |
40 psi |
ASTM D412 |
90mils / 2.286 mm |
1.91 |
|
100mils / 2.540 mm |
2.05 |
|||
|
Continuos Use Temp
|
-50 to 200℃ |
*** |
110mils / 2.794 mm |
2.16 |
|
120mils / 3.048 mm |
2.29 |
|||
|
Dielectric Breakdown Voltage
|
>1500～>5500 VAC | ASTM D149 |
130mils / 3.302mm |
2.44 |
|
140mils / 3.556 mm |
2.56 |
|||
|
Dielectric Constant
|
5.5 MHz | ASTM D150 |
150mils / 3.810 mm |
2.67 |
|
160mils / 4.064 mm |
2.77 |
|||
|
Volume Resistivity
|
4.0X10" Ohm-meter |
ASTM D257 |
170mils / 4.318 mm |
2.89 |
|
180mils / 4.572 mm |
2.98 |
|||
|
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
3.05 |
|
200mils / 5.080 mm |
3.14 |
|||
|
Thermal conductivity
|
1.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
