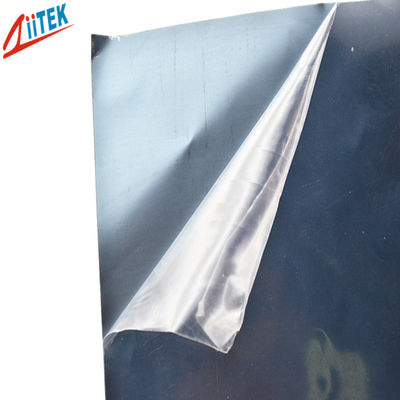

Black Ultra-thin High thermal conductivity 700W/m-K thermal graphite sheet for mobile phone

Black Ultra-thin High thermal conductivity 700W/m-K thermal graphite sheet for mobile phone
Black Ultra-thin High thermal conductivity 700W/m-K thermal graphite sheet for mobile phone Black Ultra-thin High thermal conductivity 700W/m-K thermal graphite sheet for mobile phone Black Ultra-thin High thermal conductivity 700W/m-K thermal graphite sheet for mobile phone Black Ultra-thin High thermal conductivity 700W/m-K thermal graphite sheet for mobile phone

Large Image :  Black Ultra-thin High thermal conductivity 700W/m-K thermal graphite sheet for mobile phone

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIR™340C-T2
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3 work days
Detailed Product Description
Products Name: Black Ultra-thin High Thermal Conductivity 700W/m-K Thermal Graphite Sheet For Mobile Phone Color: Black
Density: 2.7 G/cc Thermal Conductivity (Z Axis Direction): 30W/m-K
Thermal Conductivity (X-Y Axis Direction): 700 W/m-K Thickness: 0.040 Mm
Keywords: Thermal Graphite Sheet Application: Laptop,Notebook,Automotive
Highlight:

pyrolytic graphite sheet

,

thin graphite sheet

,

CPU Thermal Graphite Sheet

Black Ultra-thin High thermal conductivity 700W/m-K thermal graphite sheet for mobile phone





TIR™340C-T2 Series products are a new material with highly effective heat conductivity andabsorption, stabilized device function and reduce the chance of malfunction by spreadingthe high temperature heat radiated from specific parts or devices.



TIR300C Series Datasheet-(E).pdf



Black Ultra-thin High thermal conductivity 700W/m-K thermal graphite sheet for mobile phone 0

Feature



> Easy to assemble
> Ultra-thin type
> RoHS Compliant
> Thermal Conductivity: 1000W/mK
> Reduce hot spots and protect sensitive areas
> Light weight
> Flexible
> Ease of manufacturing for high volume production



Application



> PDP,LCD TV
> Laptop,Notebook,Projector
> Mobile phone
> Automotive electronics
> displays, lighting, telecom
> Hand‐held devices
> Set top box





Typical Properties of TIR™300C series
Product Name TIR™340C-T2 TIR™360-C-T2 TIR™380-C-T2 Test Method
Colour Black
Material Cearbon namo composite copper foil vacuum sputtering
Total Thickness 0.040 mm 0.060 mm 0.080mm ASTM D751
Copper foil thickness 0.038mm 0.057mm 0.077mm ASTM D751
Single-sided coating thickness 0.0010mm 0.0015mm 0.0015mm ASTM D751
Thickness Tolerance +/- 10% +/- 10% +/- 10% ASTM D751
Density 2.7 g/cc 2.7 g/cc 2.7 g/cc ASTM D297
Hardness 85 Shore A ASTM D2240
Operation Temperature -40℃~ 400℃ ******
Volume Resistivity 5.2X10³ Ohm-meter ASTM D257
Tensile Strength 30psi 35psi 40psi ASTM D412
Typical Thermal Conductivit (In Z axis) 30W/m-K 30W/m-K 30W/m-K ASTM D5470
Typical Thermal Conductivity (In X-Y axis) 700W/m-K 700W/m-K 700W/m-K ASTM D5470
Thermal Resistance @100psi 0.065 (in²℃/W) 0.079 (in²℃/W) 0.092 (in²℃/W) ASTM D5470



Standard Sheets Sizes :

500mm x 200m
TIR TM300C series Individual die cut shapes can be supplied.

Consult the factory alternate thickness.




Company profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.


Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Black Ultra-thin High thermal conductivity 700W/m-K thermal graphite sheet for mobile phone 1



FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.



Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
