Soft Silicone Thermally Conductive Gel 6.0W/MK China Manufacturer For LED Lighting

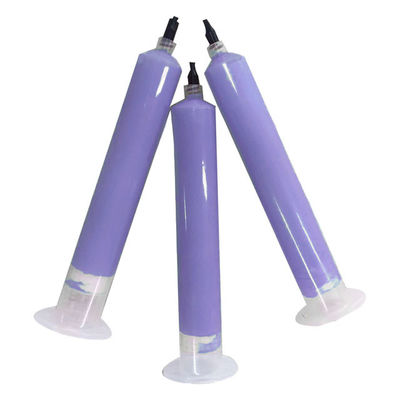

Large Image : Soft Silicone Thermally Conductive Gel 6.0W/MK China Manufacturer For LED Lighting

Product Details:

Place of Origin:	China
Brand Name:	ZIITEK
Certification:	UL and RoHs
Model Number:	TIF060-16

Payment & Shipping Terms:

Minimum Order Quantity:	1000 tubes
Price:	negotiation
Packaging Details:	600cc/tube
Delivery Time:	7-15work days
Supply Ability:	10000/day

Contact Now

Detailed Product Description

Products Name:	Soft Silicone Thermally Conductive Gel 6.0W/MK China Manufacturer For LED Lighting	Thermal Conductive:	6.0W/mK
Specific Gravity:	3.40g/cc	Fire Rating:	94 V0
Color:	Purple	Recommended Operating Temp:	-45-200 ℃
Keywords:	Thermally Conductive Gel	Application:	LED Lighting,Telecommunication Equipment
Highlight:	thermal putty , thermally conductive putty

Soft Silicone Thermally Conductive Gel 6.0W/MK China Manufacturer For LED Lighting

Company Profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Products description

TIF^®060-16 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF^®060-16 has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular silicon chips, LED lighting, and other high-power electronic components.

Feature

> Thermal conductivity: 6.0 W/mK
> Soft, very low compression
> Low thermal impedance
> Operate automatically
> Proven long-term reliability

Application

> Heat-sink & frame
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic laboratory equipment

TIF^®060-16 Typical Properties
Property	Value	Test method
Color	Purple	Visual
Construction & Composition	Ceramic filled silicon material	-
Flow Rate(g/min)	36	Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi)
Flow Rate(g/min)	36	Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi)
Density(g/cc)	3.40g/c	ASTM D297
Thermal conductivity	6.0W/mK	ASTM D5470
Thermal Impedance @10psi (℃.in²w)	0.071	ASTM D5470
Thermal Impedance @50psi (℃.in²w)	0.055	ASTM D5470
Recommended Operating Temp	-45 ~200°C	Ziitek Test Method
Dielectric Strength(V/mm)	≥4000	ASTM D149
Bond Line Thickness(mm)	0.2	Ziitek Test Mothod
Flame Rating	V-0	UL 94
Shelf Life	12 months	-

Product Specification:
30 cc/pcs, 98 pcs/box; 300 cc/pcs, 6 pcs/box.
Custom packaging available for automation use. Please contact us for confirming.
