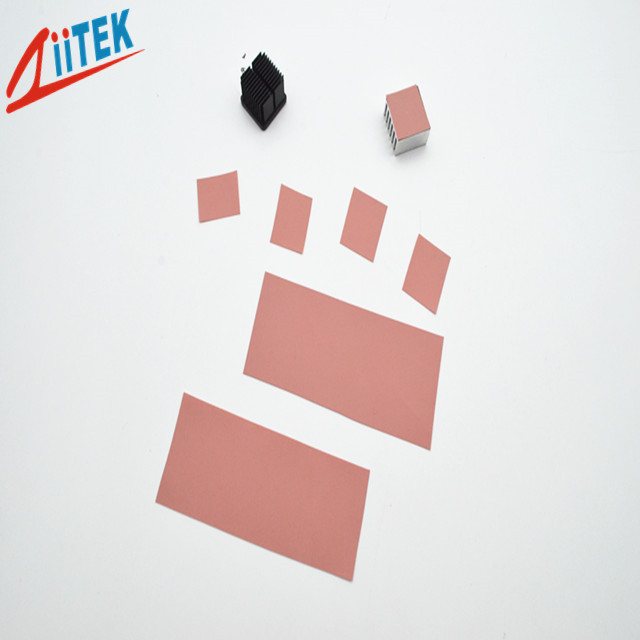

Rohs Compliant Thermal Conductive And Insulated Sheet For CPU GPU Gap Filling

Rohs Compliant Thermal Conductive And Insulated Sheet For CPU GPU Gap Filling

Large Image :  Rohs Compliant Thermal Conductive And Insulated Sheet For CPU GPU Gap Filling

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs and UL
Model Number: TIS112-02 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3Word days
Supply Ability: 100000PCS/Day
Detailed Product Description
Products Name: Rohs Compliant Thermal Conductive And Insulated Sheet For CPU GPU Gap Filling Color: Pink
Construction & Compostion: Ceramic Filled Silicone Elastomer / Fiberglass Specific Gravity: 1.751 G/cc
Continuos Use Temp: -45 To 180℃ Thermal Conductivity: 1.0W/mK
Flame Fire Rating: 94-V0 Hardness: 50 Shore A
Keywords: Thermal Insulation Sheet
Highlight:

Insulated Thermal Conductive Sheet

,

Rohs Compliant Thermal Insulation Materials

,

CPU GPU Thermal Conductive Sheet

Rohs Compliant Thermal Conductive And Insulated Sheet For CPU GPU Gap Filling



The TIS™100-02 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.



TIS100-02-Serice-Datasheet-REV01.pdf

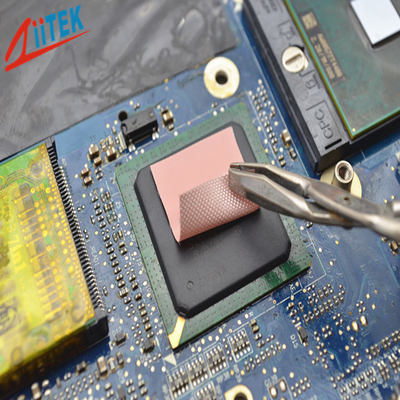

Rohs Compliant Thermal Conductive And Insulated Sheet For CPU GPU Gap Filling 0


Features
> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications




Applications


> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card





Typical Properties of TIS100-02 series
Product Name TIS109-02 TIS112-02 TIS118-02 Test Method
Color Pink Visual
Construction &Compostion Ceramic filled silicone elastomer / Fiberglass *******
Composite Thickness 0.23mm 0.3mm 0.45mm ASTM D374
Hardness 50 Shore A ASTM D751
Specific Gravity 1.751g/cc ASTM D297
Tensile Strength 425 Kpsi ASTM D412
Continuous Use Temp -45 to 180℃ *******
Dielectric Breakdown Voltage >3500 VAC ASTM D149
Dielectric Constant 5.5 MHz ASTM D150
Volume Resistivity 4.0X10¹³ Ohm-meter ASTM D257
Flame Rating 94 V0 E331100
Thermal conductivity 1.0 W/mK ASTM D5470


Standard Thicknesses:
0.009"(0.228mm)0.012"(0.304mm)0.018"(O.457mm), Consult the factory alternate thickness.


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.Request adhesive on doule side with "A2" suffix.



Standard Sizes:
12" x 160(304mm x 48.76M)
lndividual die cut shapes can be supplied.



Rohs Compliant Thermal Conductive And Insulated Sheet For CPU GPU Gap Filling 1





Company Profile



With professional R&D capabilities and over 18 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.



Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.



Rohs Compliant Thermal Conductive And Insulated Sheet For CPU GPU Gap Filling 2

FAQ:



Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.



Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
