Low Thermal Resistance Thermal Graphite Sheet For Industrial Use

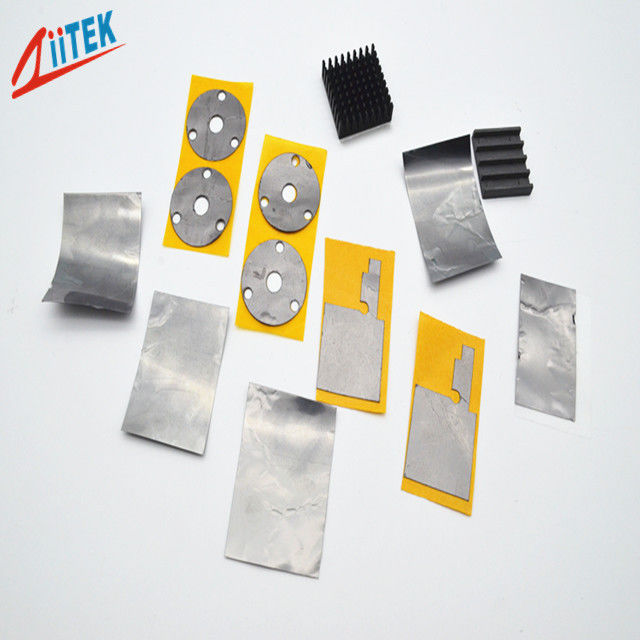

Large Image : Low Thermal Resistance Thermal Graphite Sheet For Industrial Use

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIR606

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days

Contact Now

Detailed Product Description

Products Name:	Low Thermal Resistance Thermal Graphite Sheet For Industrial Use	Materials:	Natural Graphite
Color:	Black	Hardness:	2.2 G/cc
Thermal Conductivity (Z Axis Direction):	6.0W/m-K	Thermal Conductivity (X-Y Axis Direction):	240W/m-K
Operating Temperature:	-200℃ ～300℃	Keywords:	Thermal Graphite Sheet
Highlight:	pyrolytic graphite sheet , thin graphite sheet , 10.0W/m-K Thermal Graphite Sheet

Low Thermal Resistance Thermal Graphite Sheet For Industrial Use

The TIR™606 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.

Features

Naturally tacky needing no further adhesive coating

Soft and Compressible for low stress applications

Available in varies thickness

Soft and compressible for low stress applications

large tolerance stack ups

Broad range of hardnesses available

Moldability for complex parts

Good thermal performance

High tack surface reduces contact resistance

RoHS compliant

UL recognized

Ambient and accelerated cure schedules

thermal conductivity: 6.0W/mK

Applications

Cooling components to the chassis of frame

High speed mass storage drives

Heat Sinking Housing at LED-lit BLU in LCD

LED TV and LED-lit lamps

RDRAM memory modules

Micro heat pipe

Automotive engine control units

Telecommunication hardware

Cooling components to chassis frame or other mating components

Audio and video components

IT infrastructure

GPS navigation and other portable devices

Chassis walls to other surfaces

CD-Rom, DVD-Rom cooling

LED Power Supply

LED Controller

LED Lights

LED Ceilinglamp

Monitoring the Power Box

AD-DC Power Adapters

Rainproof LED Power Supply

Waterproof LED Power Supply

Typical Properties of TIR™600 series
Product Name	TIR™605	TIR™606	TIR™610	TIR™620	Test Method
Colour	Black
Material	Natural Graphite
Thickness	0.005" (0.127 mm)	0.006" (0.152 mm)	0.010" (0.254 mm)	0.020" (0.508 mm)	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃~ 300℃				******
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	******
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 (in²℃/W)	0.057 (in²℃/W)	0.098 (in²℃/W)	ASTM D5470

Standard Sheets Sizes: 500mm x 50m
TIR^TM600 series Individual die cut shapes can be supplied.
Consult the factory altemate thickness.
