High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer

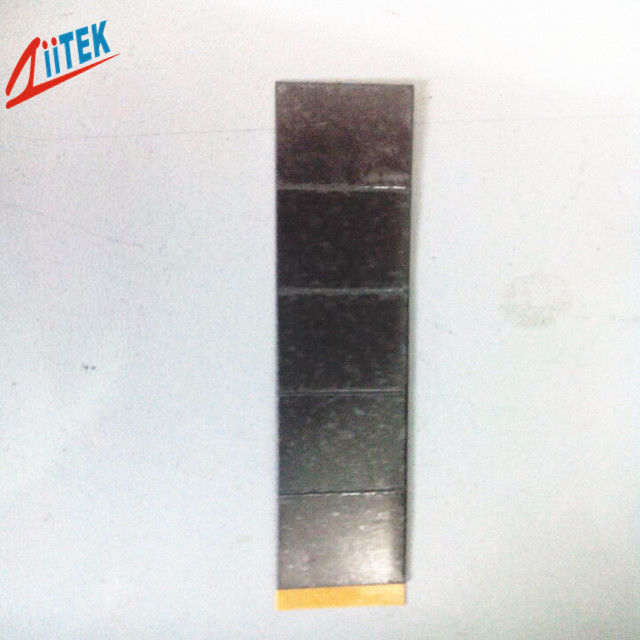

Large Image : High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHs
Model Number:	TIR605

Payment & Shipping Terms:

Minimum Order Quantity:	1000PCS
Packaging Details:	1000pcs/bag
Delivery Time:	2-3 work days

Contact Now

Detailed Product Description

Products Name:	High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer	Materials:	Natural Graphite
Color:	Black	Hardness:	2.2 G/cc
Thermal Conductivity (Z Axis Direction):	6.0W/m-K	Thermal Conductivity (X-Y Axis Direction):	240W/m-K
Operating Temperature:	-200℃ ～300℃	Keywords:	Natural Graphite Gasket
Highlight:	pyrolytic graphite sheet , thin graphite sheet , Thermal Graphite Sheet 2.2 g/cc

High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer

The TIR^TM605 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.

Features

>Good thermal conductive: 240 W/mK
>Easy to assemble
>Ultra-thin type
>RoHS Compliant

Applications

>PDP,LCD TV,Set top box
>Laptop,Notebook,Projector
>Mobile phone,Hand-held devices
>Automotive electronics

Typical Properties of TIR™600 series
Product Name	TIR™605	TIR™606	TIR™610	TIR™620	Test Method
Colour	Black
Material	Natural Graphite
Thickness	0.005" (0.127 mm)	0.006" (0.152 mm)	0.010" (0.254 mm)	0.020" (0.508 mm)	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃~ 300℃				******
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	******
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 (in²℃/W)	0.057 (in²℃/W)	0.098 (in²℃/W)	ASTM D5470

Standard Sheets Sizes: 500mm x 50m
TIR^TM 600 series Individual die cut shapes can be supplied.
Consult the factory altemate thickness.

High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer 0

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
