TIF®070-11 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF®070-11 has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular silicon chips, LED lighting, and other high-power electronic components.
Feature
>Thermal conductivity
>Soft, very low compression
>Low thermal inpedance
>Operate automaticly
>Proven long-term reliability
Application
>Heat-sink & frame
>LED backlight module,LED lighting
>High speed hardware driver
>Micro heat pipe
>Vihicel enginee controler
>Telecom industry
>Semiconductor 'automatic laboratory equipment.
| TIF®070-11 Typical Properties |
| Property |
Value |
Test method |
| Color |
Gray |
Visual |
| Construction & Composition |
Ceramic filled silicon material |
- |
| Flow Rate(g/min) |
30 |
Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi) |
| Density(g/cc) |
3.50g/c |
ASTM D297 |
| Thermal conductivity |
7.0W/mK |
ASTM D5470 |
| Thermal Impedance @10psi (℃.in²w) |
0.142 |
ASTM D5470 |
| Thermal Impedance @50psi (℃.in²w) |
0.12 |
ASTM D5470 |
| Recommended Operating Temp |
-45 ~200°C |
Ziitek Test Method |
| Dielectric Strength(V/mm) |
≥4000 |
ASTM D149 |
| Bond Line Thickness(mm) |
0.2 |
Ziitek Test Mothod |
| Flame Rating |
V-0 |
UL 94 |
| Shelf Life |
12 months |
- |
Packing details

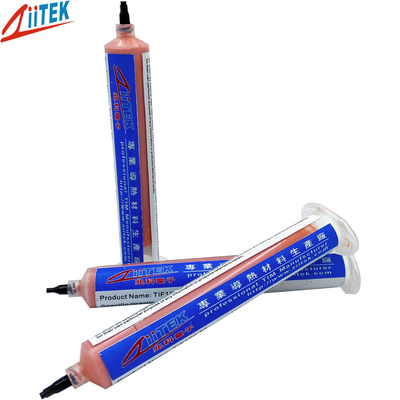

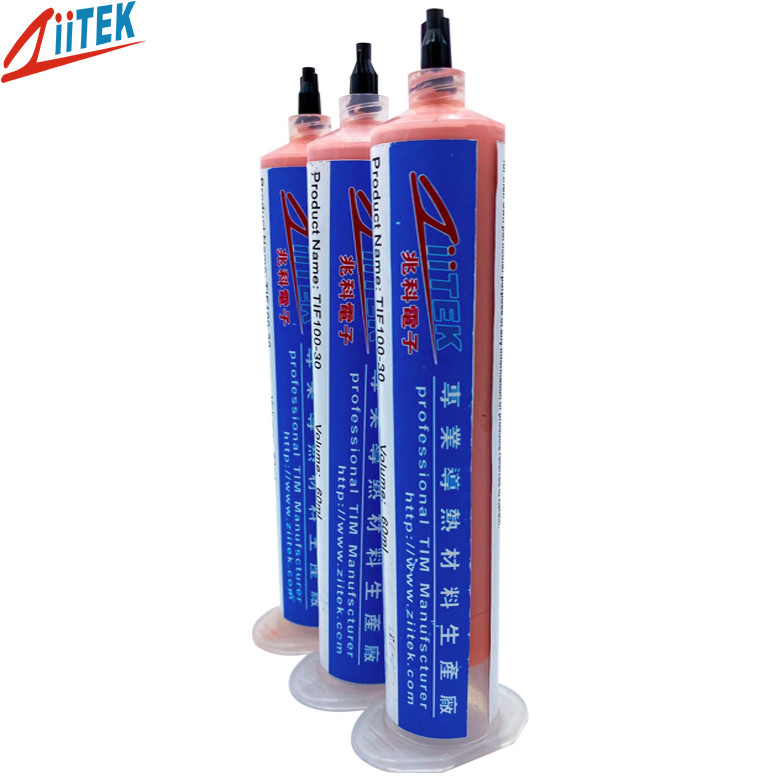

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box
We offer the custom packaged in syringes for automated despensing applications.
Please contact us for confirming.
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
