High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness

China High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness supplier
High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness supplier High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness supplier High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness supplier High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness supplier

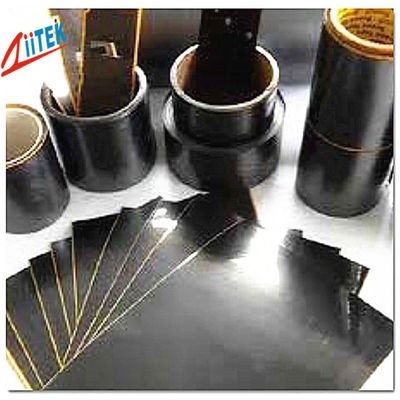

Large Image :  High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness

Product Details:

Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIRTM606-10

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Packaging Details: 1000pcs/bag
Delivery Time: 2-3 work days
Contact Now
Detailed Product Description
Materials: Natural Graphite Color: Black
Hardness: 2.2 G/cc Thermal Conductivity (Z Axis Direction): 10.0W/m-K
Thermal Conductivity (X-Y Axis Direction): 150W/m-K Operating Temperature: -200℃ ~300℃

High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness



The TIRTM606-10 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.


Features


>  High thermal conductive of 10 W/mK
>  Low thermal resistance


Applications


>  Power conversion equipment
>  Power supplies
>  Large telecommunications switching hardware
>  Notebook computers



High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness



Typical Properties of TIR™606-10 Series
Product Name TIRTM606-10 Test Method
Materials Natural graphite
Color Black Visual
Composite Thickness
(in/mm)
0.006"(0.152mm)
Thickness Tolerance +/- 10%
Density 2.2 g/cc
Hardness 85 Shore A ASTM D2240
Thermal conductivity
(Z Axis Direction)

10.0W/m-K

ASTM D5470
Thermal conductivity
(X-Y Axis Direction)

150W/m-K

ASTM D5470
Tensile Strength 715psi (4900kpa) ASTM D5470
Thermal Impedance
( @100psi)



0.042 in²℃/W
ASTM D5470
Operating Temperature -200℃ ~300℃


Standard Thicknesses


0.004"(0.102mm)    0.005"(0.127mm)    0.006"(0.152mm)
0.008"(0.203mm)    0.010"(0.254mm)    0.012"(0.304mm)
0.020"(0.508mm)
Consult the factory alternate thickness.


Standard Sizes


18" x 18"(457mm x 457mm)  18" x 300'(457mm x 91.4M)
Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive


Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.


Insulation


Request plastic on one side with "P1" suffix
