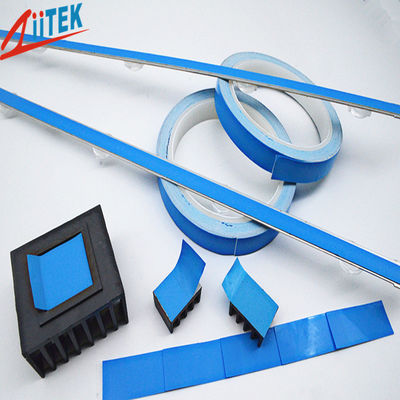

The TIA™810FG Acrylic Thermally Adhesive Tape For LED Mount Heat Sink Conductive tape 0.9 W/MK

The TIA™810FG  Acrylic Thermally Adhesive Tape For LED Mount Heat Sink Conductive tape 0.9 W/MK
The TIA™810FG  Acrylic Thermally Adhesive Tape For LED Mount Heat Sink Conductive tape 0.9 W/MK
video play

Large Image :  The TIA™810FG Acrylic Thermally Adhesive Tape For LED Mount Heat Sink Conductive tape 0.9 W/MK

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: The TIA™ 818
Payment & Shipping Terms:
Minimum Order Quantity: 10SQM
Packaging Details: 10RL/bag
Delivery Time: 2-3Work day
Supply Ability: 1000SQM/Day
Detailed Product Description
Thickness: 0.1mmT~0.5mmT Adhesive Type: Acrylic Adhesive
Peel Adhesion: 1200 G/inch2 Thermal Conductivity: 0.9 W/mK
Voltage Breakdown: > 3000 Vac
High Light:

adhesive foam tape

,

acrylic adhesive tape

,

Acrylic Thermally Adhesive Tape

The TIA™810FG Acrylic Thermally Adhesive Tape For LED Mount Heat Sink Conductive tape 0.9 W/MK



The TIA™810FG Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.



TIA800FG Series Datasheet-(E)-REV01.pdf


Features


>  Thermal Conductivity: 0.8 W/mK
>  High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
>  High performance, thermally conductive acrylic adhesive



Applications


>  Mount heat sink onto BGA graphic processor or drive processor
>  Mount heat spreader onto power converter PCB or onto motor control PCB
>  High performance, thermally conductive acrylic adhesive
>  Can be used instead of heat cure adhesive,screw mounting or clip mounting



Typical Properties of TIA™800FG Series
Product Name TIATM805FG TIATM806FG TIATM808FG TIATM810FG TIATM815FG TIATM820FG  Test  Method
Color White Visual
Adhesive Type Acrylic Adhesive ********
Backing Type Glass fiber ********

Composite

Thickness

0.005" 0.127mm 0.006" 0.152mm 0.020" 0.203mm 0.010" 0.254mm 0.015" 0.381mm 0.020" 0.508mm ASTM D374

Aluminum

Foil Thickness

±0.001"  ±0.025mm ±0.001"  ±0.025mm ±0.0012" ±0.03mm ±0.0012" ±0.03mm ±0.0015" ±0.038mm ±0.002"  ±0.05mm

ASTM D374

Voltage Breakdown > 2000 Vac > 2000 Vac > 2300 Vac > 3000 Vac > 3500 Vac > 3500 Vac ASTM D149
Peel Adhesion 1200 g/inch2 JIS K02378

Holding Power

25℃/Days

> 120 kg/inch2 JIS K023711
Holding Power 120℃/Hours > 10 kg/inch2 JIS K023711

Recommend

Using Pressure

10 psi ********
Thermal Conductivity 0.8 W/mK ********

Thermal

Impedance

@50psi

0.52℃-in²/W 0.59℃-in²/W 0.83℃-in²/W 0.91℃-in²/W 1.15℃-in²/W 1.43℃-in²/W ASTM D5470

Standard Thicknesses:

0.005"(0.127mm)     0.006"(0.152mm)     0.008"(0.203mm)     0.010"(0.254mm)     0.015"(0.381mm)     0.020"(0.508mm)
Consult the factory alternate thickness.

Standard Sizes:

10" x 18"(254mm x 457mm)    10" x 400'(254mm x 121.9M)
Individual die cut shapes can be supplied.

Reinforcement:

TIA™800 Series sheets are fiberglass reinforced.
