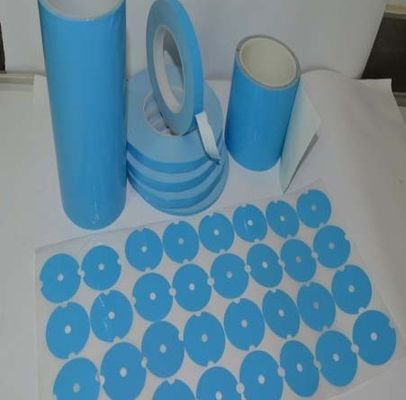

0.8 W/MK Glass Fiber Acrylic Thermal Adhesive Tape For Bonding Heat Dissipation Fins

High performance thermally conductive acrylic adhesive tape For LED Mount Heat Sink

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

The TIA™800FG Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.

Features

>  Thermal Conductivity: 0.8 W/mK
>  High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
>  High performance, thermally conductive acrylic adhesive

Applications

>  Mount heat sink onto BGA graphic processor or drive processor
>  Mount heat spreader onto power converter PCB or onto motor control PCB
>  High performance, thermally conductive acrylic adhesive
>  Can be used instead of heat cure adhesive,screw mounting or clip mounting

Standard Thicknesses:


0.005"(0.127mm)     0.006"(0.152mm)     0.008"(0.203mm)     0.010"(0.254mm)     0.015"(0.381mm)     0.020"(0.508mm)
Consult the factory alternate thickness.

Standard Sizes:

10" x 18"(254mm x 457mm)    10" x 400'(254mm x 121.9M)
Individual die cut shapes can be supplied.

Reinforcement:


TIA™800 Series sheets are fiberglass reinforced.
