Non Toxic Eco Silicone Rubber Thermal Gap Filler For High Speed Mass Storage Drives

Non Toxic Eco Silicone Rubber Thermal Gap Filler For High Speed Mass Storage Drives
Non Toxic Eco Silicone Rubber Thermal Gap Filler For High Speed Mass Storage Drives
video play

Large Image :  Non Toxic Eco Silicone Rubber Thermal Gap Filler For High Speed Mass Storage Drives

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-12E
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Thickness: Available In Varies Thicknes Thermal Conductivity: 1.5 W/m-K
Construction & Compostion: Ceramic Filled Silicone Rubber Specific Gravity: 2.75 G/cc
Heat Capacity: 1 L /g-K Typical Properties: TIF100-12E
High Light:

thermally conductive filler

,

thermal conductivity silicone

,

Eco Silicone Rubber Thermal Gap Filler

Non Toxic Eco Silicone Rubber Thermal Gap Filler For High Speed Mass Storage Drives

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

The TIF100-12E is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling
Features:


Available in varies thicknesses 1.5 W/mK
Broad range of hardnesses available
Moldability for complex parts
Outstanding thermal performance
High tack surface reduces contact resistance
RoHS compliant


Applications:


CD-Rom, DVD-Rom cooling
LED Power Supply
LED Controller
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power
Waterproof LED Power
SMD LED module
LED Flesible strip, LED bar

Typical Properties of TIF100-12E Series
Color

Blue

Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
*** 10mils / 0.254 mm 0.36
20mils / 0.508 mm 0.41
Specific Gravity
2.75 g/cc ASTM D297

30mils / 0.762 mm

0.47

40mils / 1.016 mm

0.52
Heat Capacity
1 l /g-K ASTM C351

50mils / 1.270 mm

0.58

60mils / 1.524 mm

0.65

Hardness
45 Shore 00 ASTM 2240

70mils / 1.778 mm

0.72

80mils / 2.032 mm

0.79
Tensile Strength

45 psi

ASTM D412

90mils / 2.286 mm

0.87

100mils / 2.540 mm

0.94
Continuos Use Temp
-50 to 200℃

***

110mils / 2.794 mm

1.01

120mils / 3.048 mm

1.09
Dielectric Breakdown Voltage
>10000 VAC ASTM D149

130mils / 3.302mm

1.17

140mils / 3.556 mm

1.24
Dielectric Constant
5.5 MHz ASTM D150

150mils / 3.810 mm

1.34

160mils / 4.064 mm

1.42
Volume Resistivity
7.8X10" Ohm-meter ASTM D257

170mils / 4.318 mm

1.50

180mils / 4.572 mm

1.60
Fire rating
94 V0

equivalent UL

190mils / 4.826 mm

1.68

200mils / 5.080 mm

1.77
Thermal conductivity
1.5W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470


Standard Thicknesses:
0.010" (0.25mm)       0.020" (0.51mm)       0.030" (0.76mm)       0.040" (1.02mm)       0.050" (1.27mm)       0.060" (1.52mm)       0.070" (1.78mm)       0.080" (2.03mm)       0.090" (2.29mm)       0.100" (2.54mm)       0.110" (2.79mm)       0.120" (3.05mm)       0.130" (3.30mm)       0.140" (3.56mm)       0.150" (3.81mm)       0.160" (4.06mm)       0.170" (4.32mm)       0.180" (4.57mm)       0.190" (4.83mm)       0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)   16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.

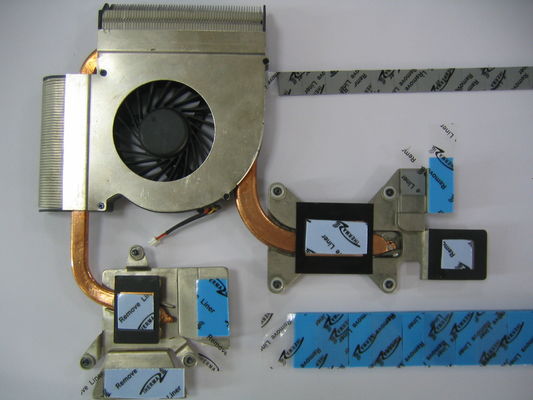

Non Toxic Eco Silicone Rubber Thermal Gap Filler For High Speed Mass Storage Drives 0
