LED Heat Sink Aluminum Foil Thermal Adhesive Tape with High Thermal Conductivity 1.6 W /mK

China LED Heat Sink Aluminum Foil Thermal Adhesive Tape with High Thermal Conductivity 1.6 W /mK supplier
LED Heat Sink Aluminum Foil Thermal Adhesive Tape with High Thermal Conductivity 1.6 W /mK supplier LED Heat Sink Aluminum Foil Thermal Adhesive Tape with High Thermal Conductivity 1.6 W /mK supplier LED Heat Sink Aluminum Foil Thermal Adhesive Tape with High Thermal Conductivity 1.6 W /mK supplier LED Heat Sink Aluminum Foil Thermal Adhesive Tape with High Thermal Conductivity 1.6 W /mK supplier

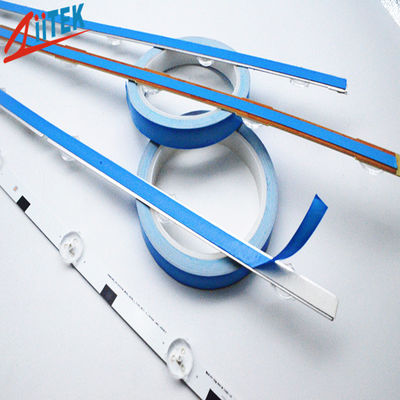

Large Image :  LED Heat Sink Aluminum Foil Thermal Adhesive Tape with High Thermal Conductivity 1.6 W /mK

Product Details:

Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: TIA800AL

Payment & Shipping Terms:

Minimum Order Quantity: 10SQM
Packaging Details: 10RL/bag
Delivery Time: 2-3Work day
Supply Ability: 1000SQM/Day
Contact Now
Detailed Product Description
Color: White Adhesive Type: Acrylic Adhesive
Backing Type: Aluminum Foil Peel Adhesion: 1200 G/inch2
Thermal Conductivity: 1.6 W/mK ThermalImpedance@50psi: 0.43 ℃-in²/W

LED Heat Sink Aluminum Foil Adhesive Tape with High Thermal Conductivity 1.6 W /mK





The TIA™800AL Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.



LED Heat Sink Aluminum Foil Thermal Adhesive Tape with High Thermal Conductivity 1.6 W /mK


Features



Thermal Conductivity: 1.6 W/mK
allow for good conformability to irregular surfaces and good electrical isolation
Easy Application
Eliminates need for external hardware (screws, clips, etc.)
Available with easy release tabs
High performance, thermally conductive acrylic adhesive
High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
High performance, thermally conductive acrylic adhesive





Applications


>  Mount heat sink onto BGA graphic processor or drive processor
>  Mount heat spreader onto power converter PCB or onto motor control PCB
>  High performance, thermally conductive acrylic adhesive
>  Can be used instead of heat cure adhesive,screw mounting or clip mounting



Typical Properties of TIA™800AL Series
Typical Properties TIA 806AL Test Method
Color White Visual
Adhesive Type Acrylic Adhesive ********
Backing Type Aluminum Foil ********
Composite Thickness 0.004" / 0.102mm ASTM D374
Aluminum Foil Thickness 0.002" / 0.05mm ASTM D374
Total Thickness 0.006" / 0.152mm ASTM D374
Thickness Tolerance ±0.001" / ±0.025mm ASTM D374
Voltage Breakdown > 1000 Vac ASTM D149
Peel Adhesion 1200 g/inch JIS K02378
Holding Power 25℃/Days > 120 kg/inch2 JIS K023711
Holding Power 120℃/Hours > 10 kg/inch2 JIS K023711
Recommend Using Pressure 10 psi ********
Thermal Conductivity 1.6 W/mK ASTM D5470
ThermalImpedance@50psi 0.43 ℃-in²/W ASTM D5470

Standard Thicknesses:

0.005"(0.127mm)     0.006"(0.152mm)     0.008"(0.203mm)     0.010"(0.254mm)     0.015"(0.381mm)     0.020"(0.508mm)
Consult the factory alternate thickness.

Standard Sizes:

10" x 18"(254mm x 457mm)    10" x 400'(254mm x 121.9M)
Individual die cut shapes can be supplied.

Reinforcement:

TIA™800 Series sheets are fiberglass reinforced.
