Thermal Silicone Foam Gasket / High Temp Silicone Gasket, Bibulous rate ≤5.0%

Thermal Silicone Foam Gasket / High Temp Silicone Gasket, Bibulous rate ≤5.0%
Thermal Silicone Foam Gasket / High Temp Silicone Gasket, Bibulous rate ≤5.0% Thermal Silicone Foam Gasket / High Temp Silicone Gasket, Bibulous rate ≤5.0% Thermal Silicone Foam Gasket / High Temp Silicone Gasket, Bibulous rate ≤5.0%

Large Image :  Thermal Silicone Foam Gasket / High Temp Silicone Gasket, Bibulous rate ≤5.0%

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHs
Model Number: Z-FOAM880
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Packaging Details: 100PCS/bag
Delivery Time: 2-3 Work Day
Supply Ability: 100000PCS/Day
Detailed Product Description
Thickness: 2mmT Product Name: Z-FOAM880
Bibulous Rate: ≤5.0% Elongation: ≥90
Application: Communication & Electrical Equipment
High Light:

silicone gasket material

,

foam gasket material

New material ZFOAM880 good recovery after using thermal silicon foam materials for Communication & Electrical Equipment



Company Profile

 Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

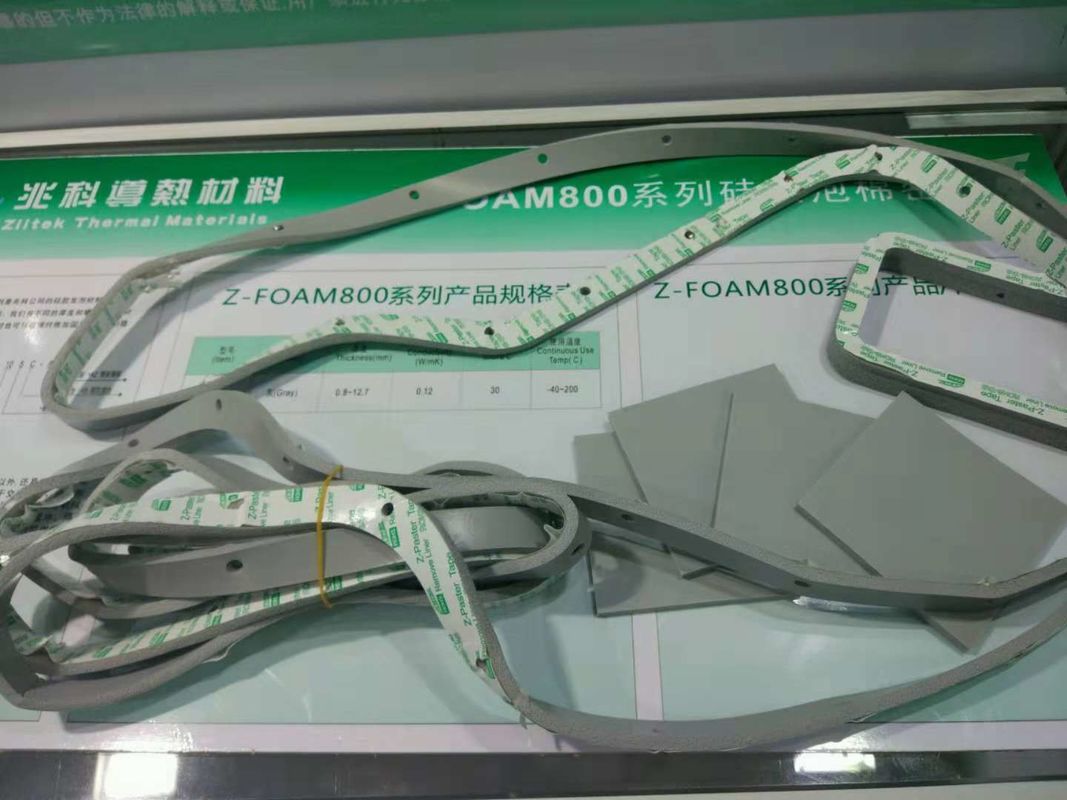

Z-Foam880 Series is the Ziitek research and development of silicone foam materials used for high temperature and high pressure.
We have different hardness and thickness specifications can be the user's flexible choice. At the same time, we can choose to join the fiberglass to increase the stability of the product size and improve the tear strength.



Z-Foam800-10SC-Series-Silicone-Foam-Specifications...

Features

Thickness: 2mmT
Provides enhanced sealing performance
Good cushioning and high compression
Resistance to ultraviolet light,ozone
Compressed after using a good recovery

Application

Car Battery
Traffic Equipment
Communication & Electrical Equipment
Electronic products
Charging Pile


Typical Properties of Z-Foam880-10SC Series



Color

Gray

Visual

Tensile strength

≥0.3Mpa

GB/T 528-2009




Density

0.35±0.03 g/cm3

  ASTM D1056

Elongation

≥90

GB/T 528-2009




Compressive stress,25%

65±10kpa

ASTM D1056

Bibulous rate

≤5.0%

ASTM D570




Compression permanent deformation

≤5.0%

ASTM D1056

Dielectric strength

≥3.0KV/mm

GB/T 1695-2005






Standard Thicknesses:

0.03-inch to 0.200-inch (0.75 to 5.0mm)

Standard Sizes:
23" x 60'(584mm x 1520mm) Individual die cut shapes can be supplied.

Options:
Special A1 ( single-sided prepare plastic ) option allows the product to strengthen sided sticky

Thermal Silicone Foam Gasket / High Temp Silicone Gasket, Bibulous rate ≤5.0% 0




Advantage

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.



They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
